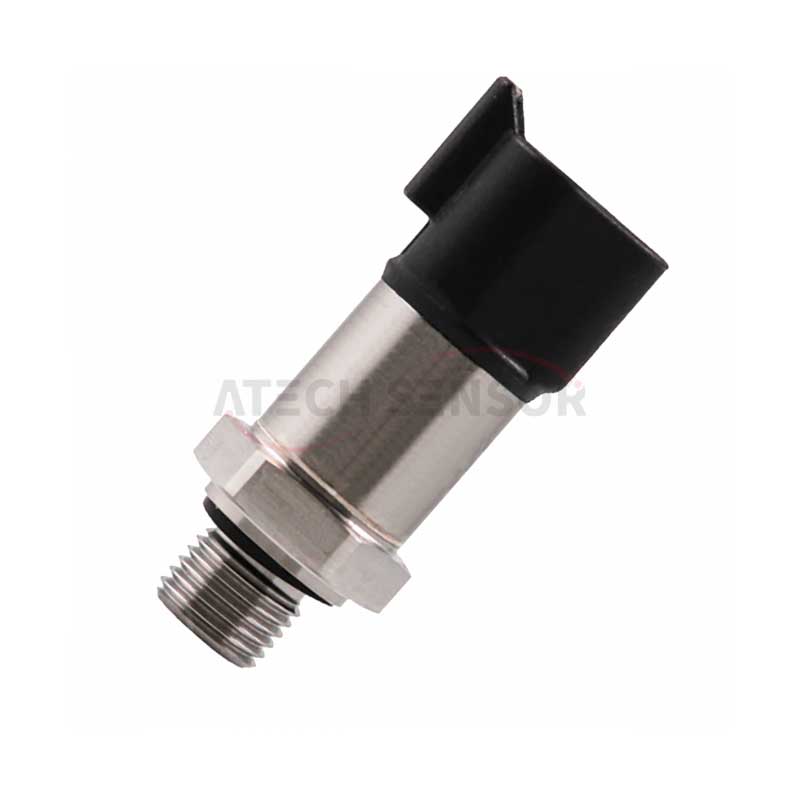

The Series Pressure transmitters are compact, yet highly durable sensors with pressure ranges from 0 to 30,000 psi and proof pressures up to 45,000 psi. These units have 304 stainless steel housings with 17-4 PH stainless steel wetted parts, allowing for more severe environments and operating temperatures up to +257°F (+125°C). A highly diverse selection of electrical and pressure connections, as well as output signals, allow for customization across a wide range of applications and media.
Product Features
●Pressure ranges from 0 to 30,000 psig
●Absolute and Gauge Devices
●Output signals: 4 – 20mA, 0 – 10V, 0 – 5V, 0.5 - 4.5V and others
●Highly diverse selection of Pressure and Electrical Connections available
Product Specification
| Pressure Range | 0 To 30,000 Psi |
| Overpressure | Varies By Pressure Range, 1.5x FS At 30k Psi |
| Operating Temp Range | -40℃ ~ +125℃ |
| Compensated Temp. Range | -40℃ ~ +125℃ |
| Storage Temp. Range | -40℃ ~ +125℃ |
| Vibration | 40g Peak To Peak Sinusoidal |
| Output Signal | 4-20mA, 0-5V, 1-5V, 0-10V, 0.5-4.5V (Ratiometric), 0.5-4.5V, 1-6V |
| Power Supply(Vs) | 8-30 VDC (For 4-20mA) 2-30VDC (For Voltage Outputs), 5VDC +/-10% (For 0.5-4.5V Ratiometric Output) |
| Load Resistance | 2mA (For Voltage Output), (Supply Voltage-8) X 50 Ohms (For Current Outputs) |
| Insulation Resistance | 100V/M Radiated Immunity |
| Housing | 304 Stainless Steel |
| Diaphragm | 17-4 PH Stainless Steel |
| Protection | IP67 (IP 65 For Large DIN And Flying Lead Electrical Connections) |
