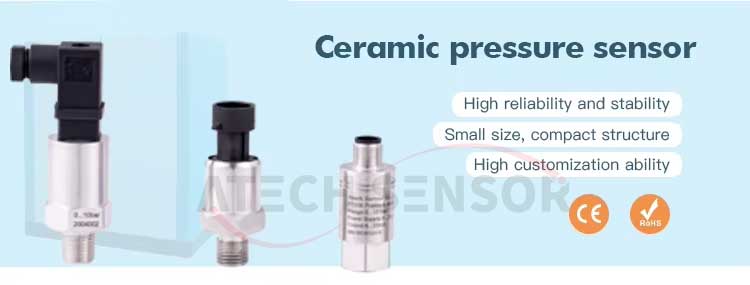

Products Description
PT208 series of pressure transmitter is a standard and most popular transmitter applied water pump, auto engines, air conditioning equipments ect. The pressure transmitter features of high stability, small size, ligh weight ,compact structure and low cost for mass production.
The products are made of stainless steel.the pressure sensingelements and chips are selected from well-known Germany brands. Specialcircuits are adopted to zero and full range conveniently. The product are approved with CE, intrinsically safe, Customized structures and output formats can be designed according to special application requirements .
Applications
● Automobile, Compressor and Refrigeration Industry-Engineering machinery
● Pressure control and monitor
● Water treatment system
● Hydraulic and Pneumatics
● HAVC and BAS Control
● Pump, fitness equipment,household appliances
● Factory Automation
● Fluid Control and Instrumentation Systems

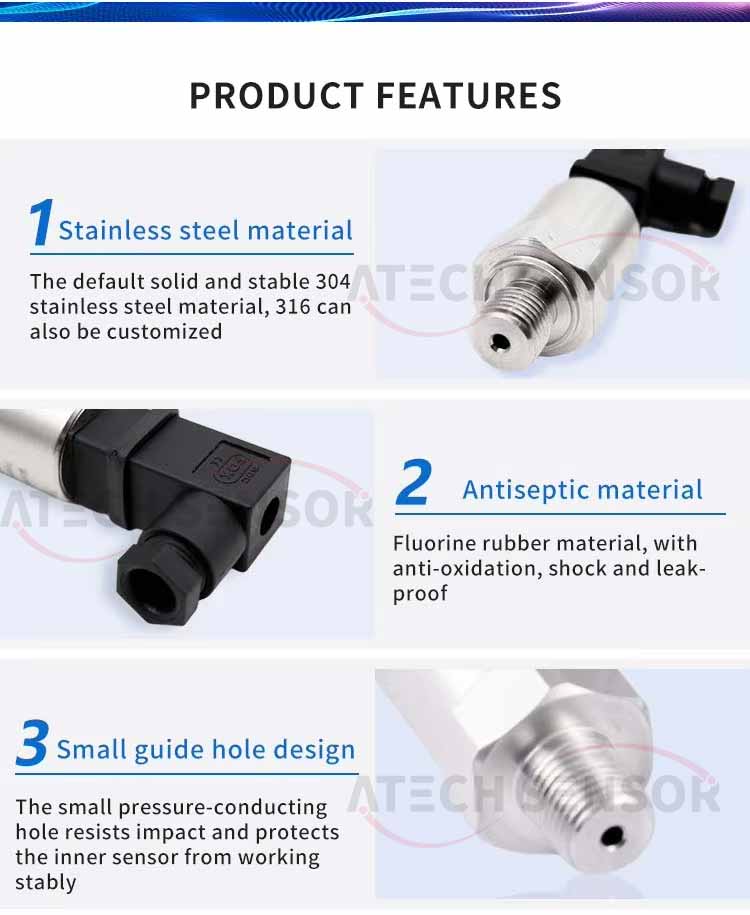

Product Features
● Stainless steel material
The default solid and stable 304 stainless steel material,316 can also be customized
● Antiseptic material
Fluorine rubber material,with anti-oxidation,shock and leak-proof
● Small guide hole design
The small pressure-conducting hole resists impact and protects the inner sensor from working stably

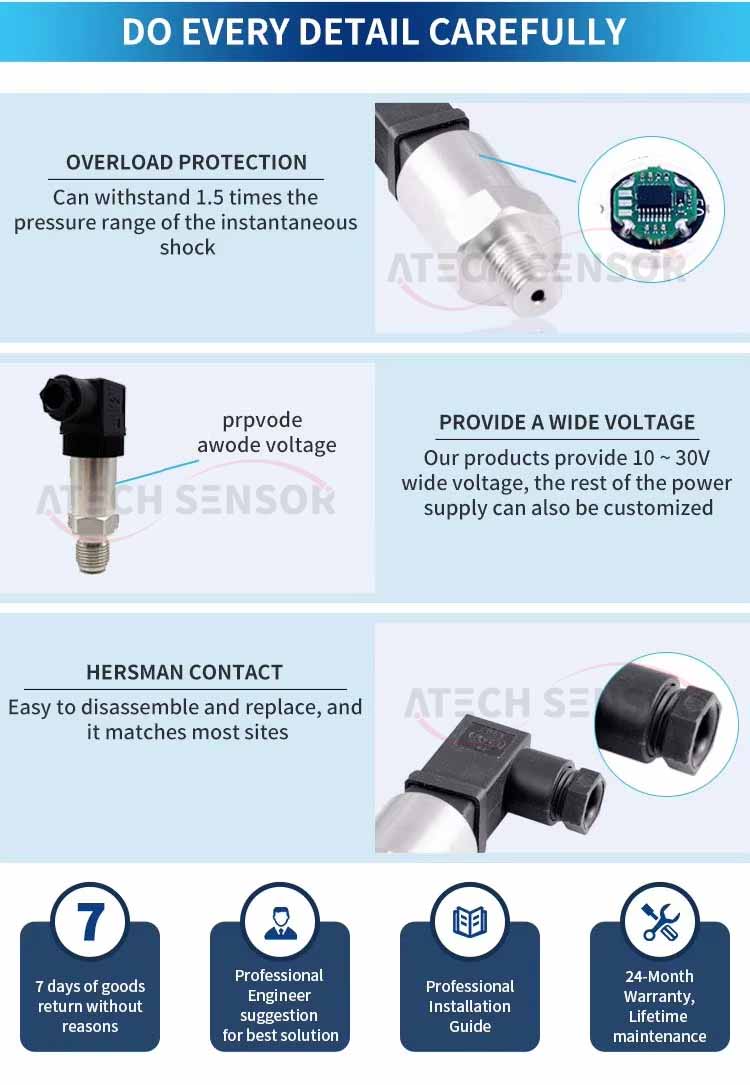

● Overload protection
Can withstand instantaneous impact of 1.5 times the pressure range
● Provide wide voltage
Our products provide 10~30V wide voltage, the rest of the power supply can also becustomized
● Hirschman contact
Easy to disassemble and replace, and it matches most sites
Product Specification
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~5...400bar |
| overload pressure | 150%FS |
| Broken Pressure | 250%FS |
| output signal | 4~20mA, 0.5~4.5V,0-10V,0-2V,4.5-5.5v |
| accuracy | 1%FS (standard) 2%FS 0.5%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), >100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | 10ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | ceramic |
| material of housing | 1Cr18Ni9Ti |
| weight | 88g |
Product Dimensions
Product Features
● Stainless steel material
The default solid and stable 304 stainless steel material,316 can also be customized
● Antiseptic material
Fluorine rubber material,with anti-oxidation,shock and leak-proof
● Small guide hole design
The small pressure-conducting hole resists impact and protects the inner sensor from working stably
● Overload protection
Can withstand instantaneous impact of 1.5 times the pressure range
● Provide wide voltage
Our products provide 10~30V wide voltage, the rest of the power supply can also becustomized
● Hirschman contact
Easy to disassemble and replace, and it matches most sites
Product Dimensions
Product Specification
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~5...400bar |
| overload pressure | 150%FS |
| Broken Pressure | 250%FS |
| output signal | 4~20mA, 0.5~4.5V,0-10V,0-2V,4.5-5.5v |
| accuracy | 1%FS (standard) 2%FS 0.5%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), >100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | 10ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | ceramic |
| material of housing | 1Cr18Ni9Ti |
| weight | 88g |
