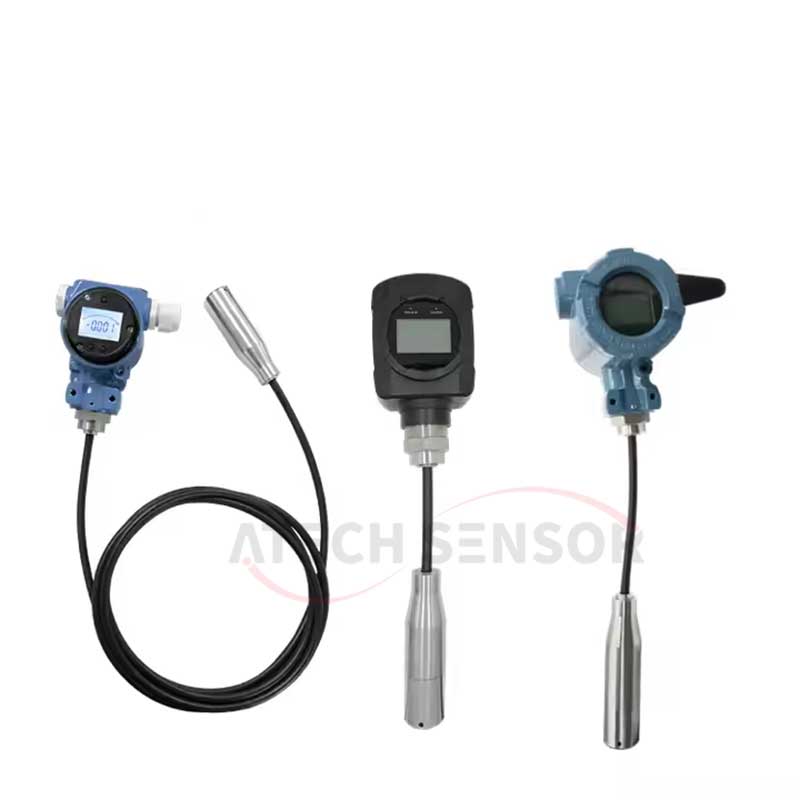

Products Description
The immersion liquid level sensor is a pressure sensor for measuring liquid level. It is based on the principle that the static pressure of the measured liquid is proportional to the height of the liquid. It uses an isolated diffused silicon sensitive element or a ceramic capacitor pressure sensitive sensor to convert the static pressure into an electrical signal, which is then converted into a standard electrical signal after temperature compensation and linear correction. It is generally suitable for liquid level measurement of various media in systems and industries such as petrochemicals, metallurgy, electric power, pharmaceuticals, water supply and drainage, and environmental protection.
Product Features
●Solid-state structure, long working life;
●High-precision measurement can be performed on everything from water to sewage, from oil to liquids with high viscosity, without being affected by foaming and sedimentation of the medium;
●Equipped with a multi-purpose mounting bracket (such as single flange/double flange, etc.), easy to install and use;
●Good anti-interference and lightning protection capabilities;
●Power reverse polarity protection and overload current limiting protection;
●New materials are not prone to fatigue wear, and have strong resistance to vibration, impact and overload.
Product Specification
Pressure range | 0-2mtr (can be customized) |
Overload pressure | 200%FS |
Process connection | M20*1.5 etc,can be customized |
Accuracy | ±0.5%,±0.2%,±0.1%, etc |
Temperature compensation range | -10~70ºC |
Long term stability | ±0.3%FS/year |
Working temperature | -40~85ºC(housing) |
Storage temperature | -40~125ºC |
Output signal | 0-10V, 0-5V, 4-20mA, IIC , RS485 |
Supply power | 10-36V |
Media suitability | Various fluids that are non-corrosive to 304 stainless steel |
Vibration | 10gRMS,(20~2000)Hz |
Ingress protection | IP68 |
Impact | 100g,11ms |
Insulation | >100MΩ @250VDC |
Response time | <1ms |

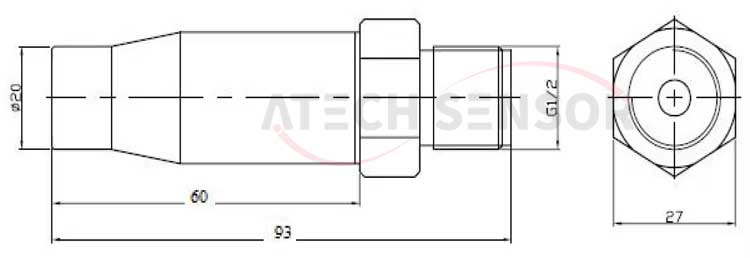

Product Dimensions
Product Features
●Solid-state structure, long working life;
●High-precision measurement can be performed on everything from water to sewage, from oil to liquids with high viscosity, without being affected by foaming and sedimentation of the medium;
●Equipped with a multi-purpose mounting bracket (such as single flange/double flange, etc.), easy to install and use;
●Good anti-interference and lightning protection capabilities;
●Power reverse polarity protection and overload current limiting protection;
●New materials are not prone to fatigue wear, and have strong resistance to vibration, impact and overload.
Product Dimensions
Product Specification
Pressure range | 0-2mtr (can be customized) |
Overload pressure | 200%FS |
Process connection | M20*1.5 etc,can be customized |
Accuracy | ±0.5%,±0.2%,±0.1%, etc |
Temperature compensation range | -10~70ºC |
Long term stability | ±0.3%FS/year |
Working temperature | -40~85ºC(housing) |
Storage temperature | -40~125ºC |
Output signal | 0-10V, 0-5V, 4-20mA, IIC , RS485 |
Supply power | 10-36V |
Media suitability | Various fluids that are non-corrosive to 304 stainless steel |
Vibration | 10gRMS,(20~2000)Hz |
Ingress protection | IP68 |
Impact | 100g,11ms |
Insulation | >100MΩ @250VDC |
Response time | <1ms |
