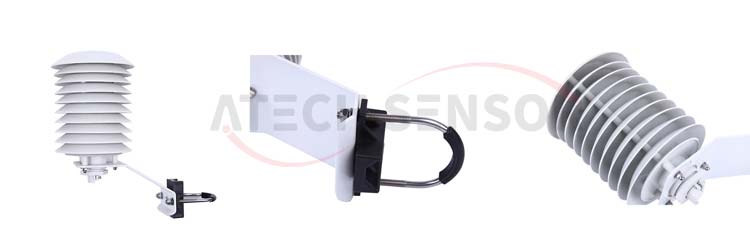

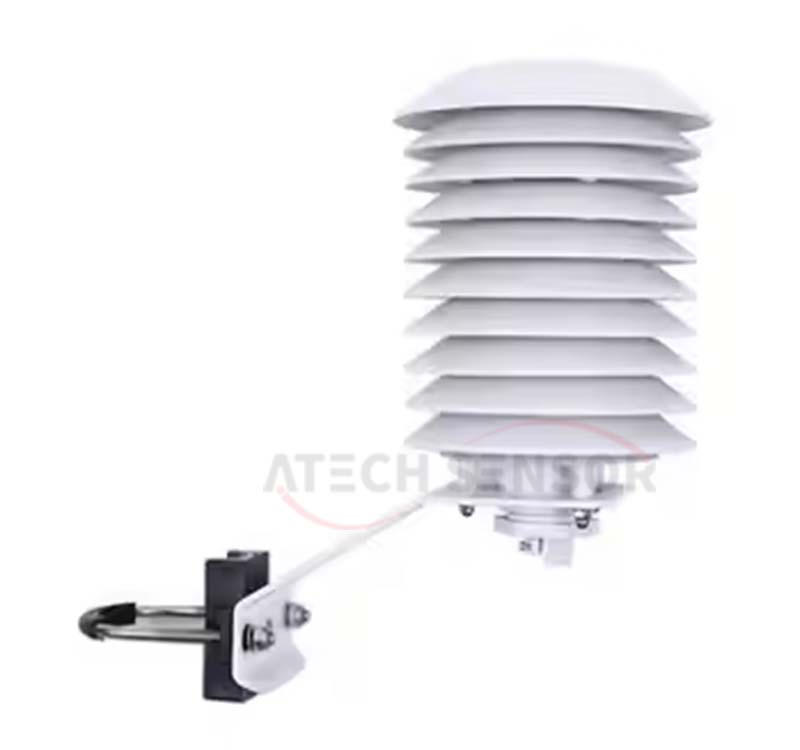

Anti UV Ambient Humidity Temperature Sensor Instrument Shelter Solar Radiation Shield for Weather Station



The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.



●High temperature resistance, resistance to strong solar radiation

●Resistant to impact by charged particles

●High reflectivity, low density, high strength

●Small size, light weight, easy installation

●Low thermal conductivity, UV resistance

●Air can pass freely at any angle

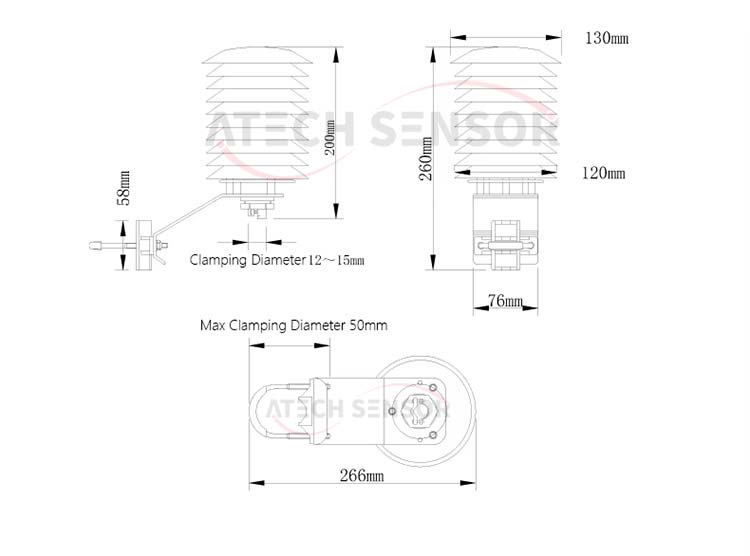

Item		Specifications
		A	B
numbers of plates		10	7
Color		Pure White
Dimensions (mm)	Inner Diameter	30	22
	Outer Diameter	130	79
	Internal Height	135	80
Material		Special engineering plastics against radiation & Stainless steel screw

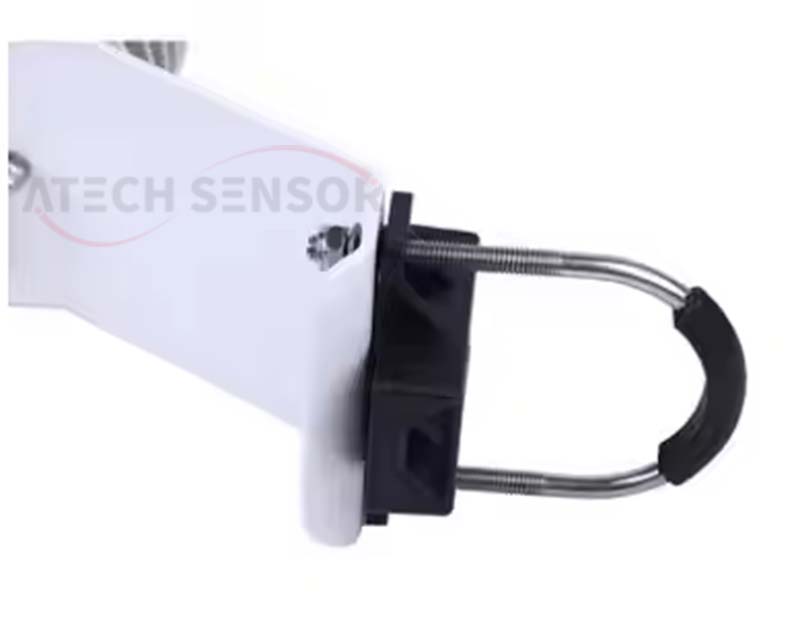

Install accessories(attached)		Stainless steel bracket
Operating temperature		-40ºC-+75ºC
