Products Description

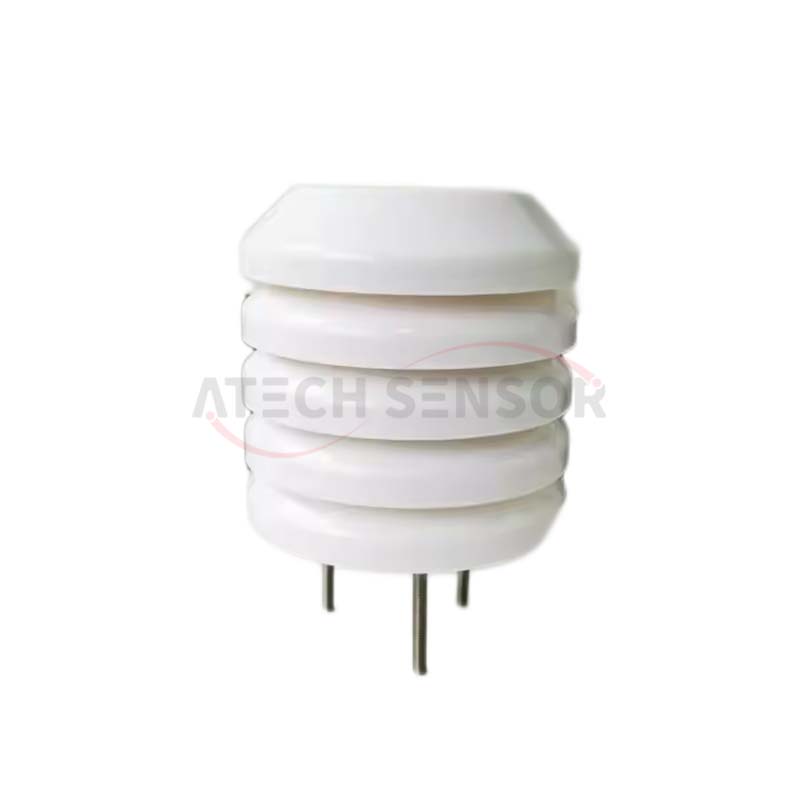

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.
Product Features
●High temperature resistance, resistance to strong solar radiation
●Resistant to impact by charged particles
●High reflectivity, low density, high strength
●Small size, light weight, easy installation
●Low thermal conductivity, UV resistance
●Air can pass freely at any angle
Product Specification
Number of plates | 6( 4-19 for choice) |
Color | Milk White |
Material | ABS Engineering plastic |
Inner hole diameter | 30mm |
Out diameter | 110mm |
Operating temperature | -40ºC~70ºC |

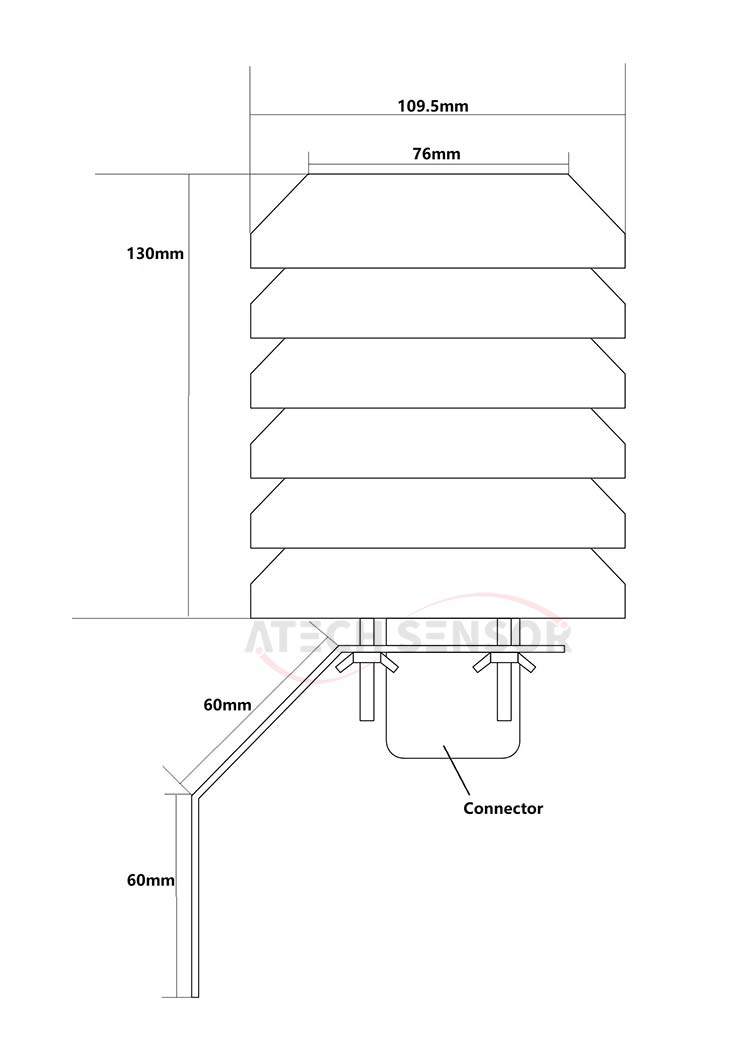

Product Dimensions
Product Features
●High temperature resistance, resistance to strong solar radiation
●Resistant to impact by charged particles
●High reflectivity, low density, high strength
●Small size, light weight, easy installation
●Low thermal conductivity, UV resistance
●Air can pass freely at any angle
Product Dimensions
Product Specification
Number of plates | 6( 4-19 for choice) |
Color | Milk White |
Material | ABS Engineering plastic |
Inner hole diameter | 30mm |
Out diameter | 110mm |
Operating temperature | -40ºC~70ºC |
