Products Description

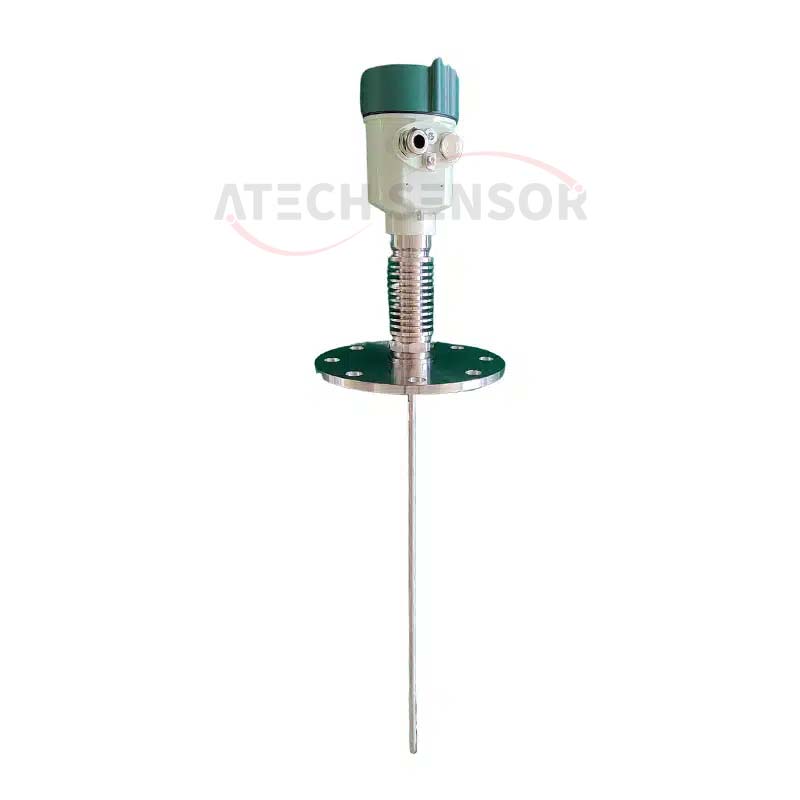

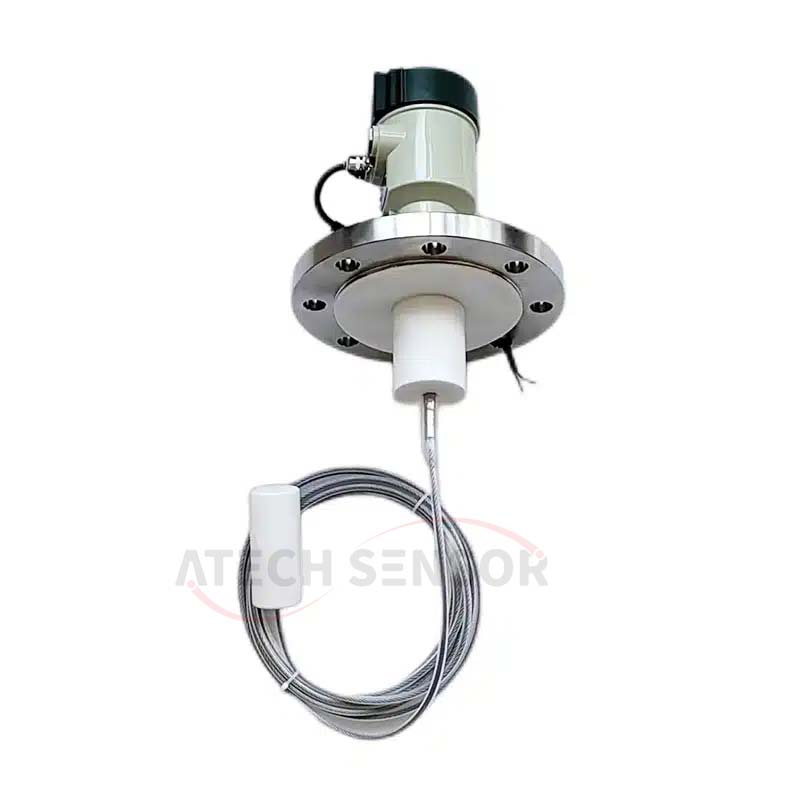

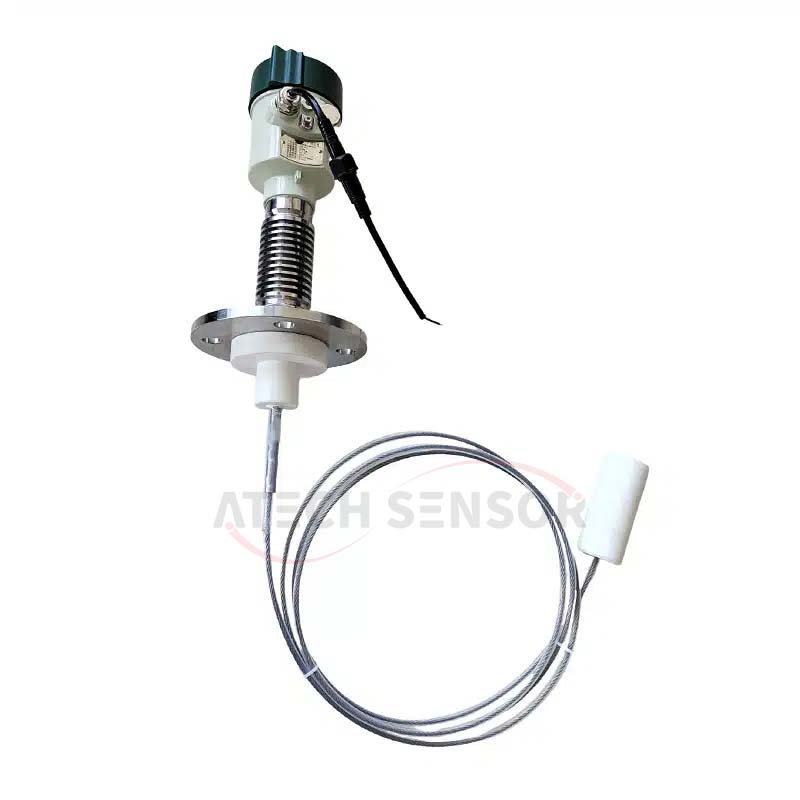

When using guided wave radar level sensors for level measurement, microwave pulses are conducted along a cable or rod probe and reflected by the product surface. the measuring probe of the TDR (Time Domain Reflection) sensor ensures that the signal reaches the medium without any interference. When the surface of the measured medium is encountered, part of the pulse of the radar level meter is reflected to form an echo and returns along the same path to the pulse transmitter. The distance between the transmitter and the surface of the measured medium is proportional to the propagation time of the pulse in between, which is then calculated to give the level height.
Guided wave radar level measurement provides continuous, reliable and highly accurate measurements using radar frequencies guided by the probe into the monitored vessel. The radar wave is guided by the probe and the wave energy is kept high, allowing measurements to be made even under harsh conditions.
In most industrial processes, varying conditions are common. Temperature, density and viscosity may change. Under these conditions, level measurements can easily change, but guided wave radar technology is unaffected by these changes.
Applications
●Oil & Gas Production
●Biomedical
●Power generation
●Pulp and paper
●Steel and Iron
●Chemicals
●Foodstuffs
Product Features
●Easy to install
●No moving parts
●Suitable for vacuum service
●High accuracy up to ± 3 mm
●Safe measurement even during filling
●Microwaves are unaffected by temperature, pressure, specific gravity and vapors
●Multiple options provide reliability in most continuous level measurement applications
Product Specification
| Brand | Atechsensor |
| Type | Guided wave radar level |
| Measure range | 6~30m |
| Process pressure | -0.1~40Mpa |
| Precision | ±3mm |
| Frequency range | 100MHz~180GHz |
| Process temperature | -40~400ºC |
Product Dimensions
Product Features
●Easy to install
●No moving parts
●Suitable for vacuum service
●High accuracy up to ± 3 mm
●Safe measurement even during filling
●Microwaves are unaffected by temperature, pressure, specific gravity and vapors
●Multiple options provide reliability in most continuous level measurement applications
Product Dimensions
Product Specification
| Brand | Atechsensor |
| Type | Guided wave radar level |
| Measure range | 6~30m |
| Process pressure | -0.1~40Mpa |
| Precision | ±3mm |
| Frequency range | 100MHz~180GHz |
| Process temperature | -40~400ºC |
