Products Description
The main function of a weather station is to observe and record meteorological data, including temperature, humidity, air pressure, wind speed, wind direction, precipitation, etc. These data have important application value in weather forecasting, climate change research, agricultural production and other fields. Through long-term and continuous observation, weather stations provide scientists with valuable data and help us better understand weather and climate changes.

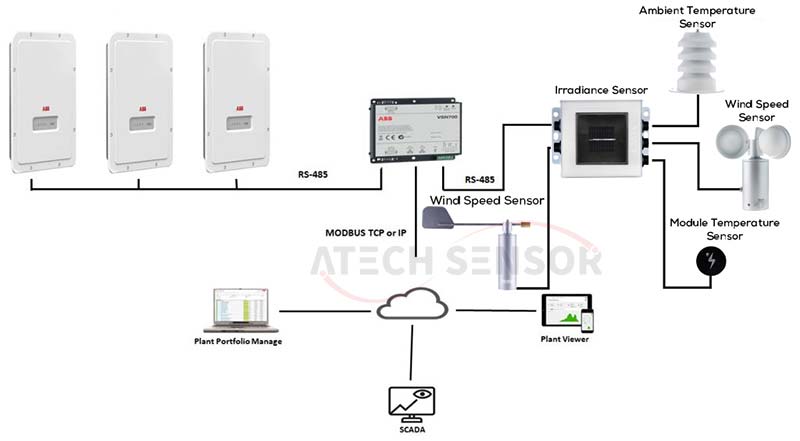

Atech provides a complete set of weather station compatible with ABB/Fimer inverter and datalogger. It contains the required sensors for monitoring Solar PV Plants.
Product Features

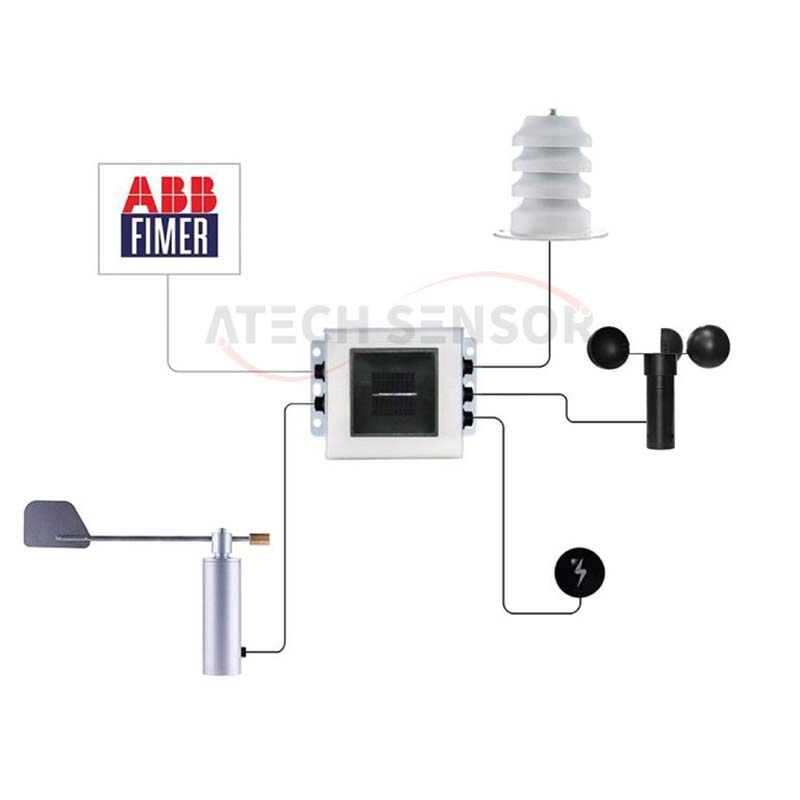

Atech Sensor decided to produce a complete set of meteorological sensors that form the ABB/Fimer Weather Station. These sensors are as follows：
●PV Pyranometer or Irradiance Sensor is one of several sensors used in solar power plants to monitor and evaluate photovoltaic systems. It is used to measure the irradiation value to compare it with the amount of energy produced, and to understand when there are serious deviations. The irradiation sensor measures the amount of radiation received from the sun in W/m².
●Ambient Temperature Sensor is used to detect the change in temperature in the environment. This sensor displays the value of the ambient temperature in degrees Celsius (° C).
●Module Temperature Sensor is the sensor used to detect the temperature values of the modules, which offers an economical solution for solar power plants and universal applications. The temperature that occurs in the panel can vary considerably depending on the ambient temperature, so the Module Temperature Sensor is used to analyze this Data. It measures the temperature value of the panel in (° C).
●Wind speed sensor is used to measure wind speed in solar power plants, also known as anemometer, It measures the wind speed in m/s.
●The Wind Direction Sensor, is used to measure wind direction in the PV Plant and provides the data to the Datalogger in degree °.
Product Specification
| Air temperature | -30°C~70°C |
| Air Humidity | 0~100%RH |
| Illuminance | 0~200KLux |
| Atmospheric pressure | 0~1100hPa |
| Wind speed | 0~30m/s |
| wind direction | 16 directions/360° |
| Rainfall | 0~4mm/min |
Product Dimensions
Product Features
Atech Sensor decided to produce a complete set of meteorological sensors that form the ABB/Fimer Weather Station. These sensors are as follows：
●PV Pyranometer or Irradiance Sensor is one of several sensors used in solar power plants to monitor and evaluate photovoltaic systems. It is used to measure the irradiation value to compare it with the amount of energy produced, and to understand when there are serious deviations. The irradiation sensor measures the amount of radiation received from the sun in W/m².
●Ambient Temperature Sensor is used to detect the change in temperature in the environment. This sensor displays the value of the ambient temperature in degrees Celsius (° C).
●Module Temperature Sensor is the sensor used to detect the temperature values of the modules, which offers an economical solution for solar power plants and universal applications. The temperature that occurs in the panel can vary considerably depending on the ambient temperature, so the Module Temperature Sensor is used to analyze this Data. It measures the temperature value of the panel in (° C).
●Wind speed sensor is used to measure wind speed in solar power plants, also known as anemometer, It measures the wind speed in m/s.
●The Wind Direction Sensor, is used to measure wind direction in the PV Plant and provides the data to the Datalogger in degree °.
Product Dimensions
Product Specification
| Air temperature | -30°C~70°C |
| Air Humidity | 0~100%RH |
| Illuminance | 0~200KLux |
| Atmospheric pressure | 0~1100hPa |
| Wind speed | 0~30m/s |
| wind direction | 16 directions/360° |
| Rainfall | 0~4mm/min |
