Products Description

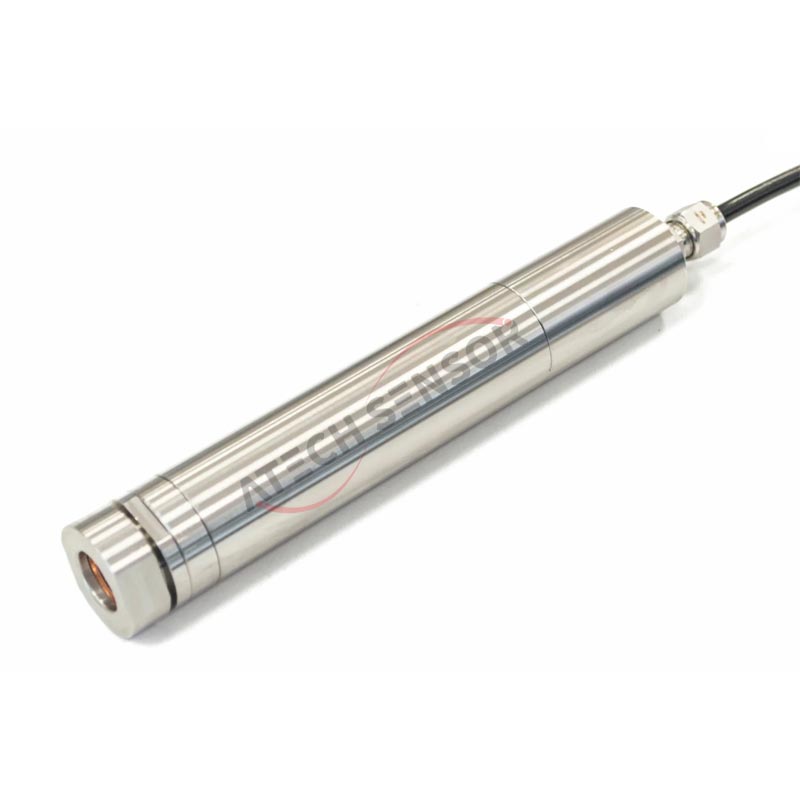

High-precision manometer based on the latest Fiber Bragg Grating (FBG) technology, capable of measuring relative or absolute pressure changes in liquid environments. The manometer's rugged construction features a connecting cable with an air channel for pressure correction to atmospheric pressure, allowing the sensor to be immersed deep in the water table to measure the height of the water column.
Product Features
● Liquid and gaseous environment applicability
● Relative or absolute pressure measurement.
● Customizable for different pressure ranges (1, 4, 7, 10, 15 and 20 bar)

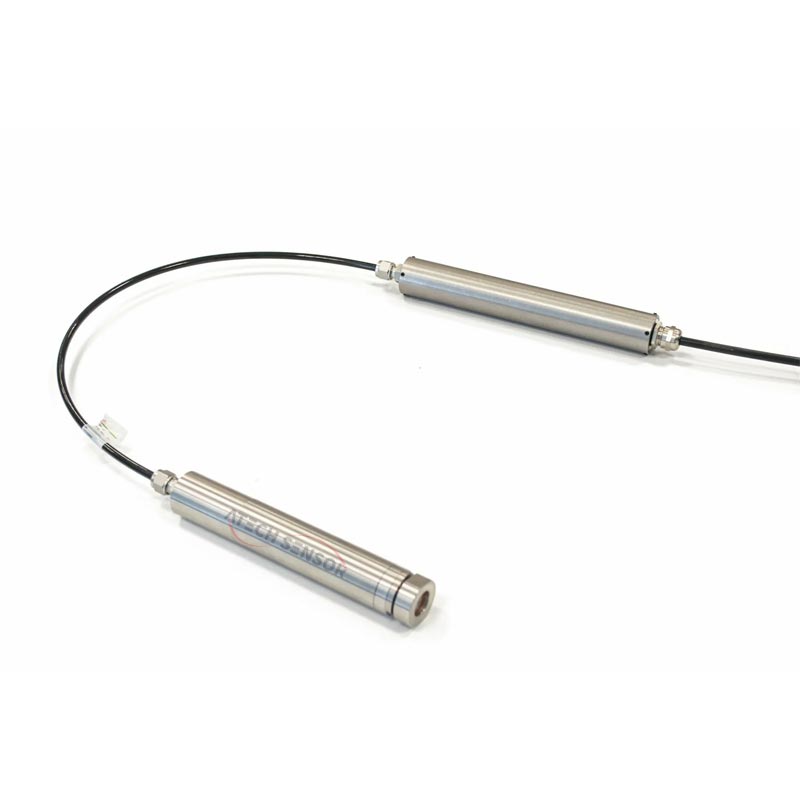

● 2-fiber port configuration allowing for chain formation with a variety of FBG-based sensors on single fiber line
● Ruggedized housing suitable for harshenvironments
● Extremely small drift (<0.5%FS/year)
● Very high accuracy and stability
Product Specification
| Performance properties | Pressure range | 1-20 bar |
| Operating temperature range | -20°C to +60°C | |
| Resolution | 0.1% FS | |
| Accuracy | <1% FS | |
| Precision | <0.5 % FS | |
| Pressure sensitivity (1bar range) | 4pm/1mbar | |
| Operating humidity range | 0 – 95 % Relative Humidity | |
| Burst pressure | up to 150 % FS | |
| Measurement rate | up to 100 measurements/second | |
| Occupied bandwidth | ~12nm | |
| Ingress Protection rating | IP 68 | |
| Physical properties | Housing material | Stainless steel SS316L |
| Dimensions without cable | Ø30 x 164 mm | |
| Weight (without cable) | 550 g | |
| Cable type | 7mm reinforced cable / 6mm PA12 (Nylon) tube | |
| Cable length | 2m | |
| Cable Bend Radius (dynamic) | 80 mm | |
| Cable Bend Radius (static) | 70 mm | |
| Connector type | FC/APC | |
| Pressure inlet thread | G1/8 | |
| Porous stone | Optional – upon request |
Product Dimensions
Product Features
● Liquid and gaseous environment applicability
● Relative or absolute pressure measurement.
● Customizable for different pressure ranges (1, 4, 7, 10, 15 and 20 bar)
● 2-fiber port configuration allowing for chain formation with a variety of FBG-based sensors on single fiber line
● Ruggedized housing suitable for harshenvironments
● Extremely small drift (<0.5%FS/year)
● Very high accuracy and stability
Product Dimensions
Product Specification
| Performance properties | Pressure range | 1-20 bar |
| Operating temperature range | -20°C to +60°C | |
| Resolution | 0.1% FS | |
| Accuracy | <1% FS | |
| Precision | <0.5 % FS | |
| Pressure sensitivity (1bar range) | 4pm/1mbar | |
| Operating humidity range | 0 – 95 % Relative Humidity | |
| Burst pressure | up to 150 % FS | |
| Measurement rate | up to 100 measurements/second | |
| Occupied bandwidth | ~12nm | |
| Ingress Protection rating | IP 68 | |
| Physical properties | Housing material | Stainless steel SS316L |
| Dimensions without cable | Ø30 x 164 mm | |
| Weight (without cable) | 550 g | |
| Cable type | 7mm reinforced cable / 6mm PA12 (Nylon) tube | |
| Cable length | 2m | |
| Cable Bend Radius (dynamic) | 80 mm | |
| Cable Bend Radius (static) | 70 mm | |
| Connector type | FC/APC | |
| Pressure inlet thread | G1/8 | |
| Porous stone | Optional – upon request |
