Products Description

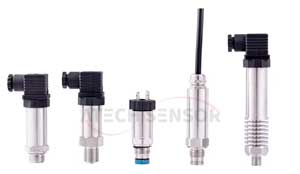

PT208 series of pressure transmitter is a standard and most popular transmitter applied water pump, auto engines, air conditioning equipments ect. The pressure transmitter features of high stability, small size, ligh weight ,compact structure and low cost for mass production.
The products are made of stainless steel.the pressure sensingelements and chips are selected from well-known Germany brands. Specialcircuits are adopted to zero and full range conveniently. The product are approved with CE, intrinsically safe, Customized structures and output formats can be designed according to special application requirements .
Applications
●Automobile, Compressor and Refrigeration Industry-Engineering machinery
●Pressure control and monitor
●Water treatment system
●Hydraulic and Pneumatics
●HAVC and BAS Control
●Pump, fitness equipment,household appliances
●Factory Automation
●Fluid Control and Instrumentation Systems
Product Features
● High precision：Hydraulic sensors are able to provide high-precision pressure measurements and are suitable for applications that require accurate control and monitoring.
● Durability：Hydraulic sensors generally have a long service life and can work in harsh environments, such as high temperature, low temperature, high pressure and corrosive media.
● Wide measurement range：Hydraulic sensors can cover a wide range of measurement ranges, from micro applications to large industrial applications.
● Real-time performance：Hydraulic sensors can provide real-time data feedback, which is very important for applications that require instant decision-making.
● Multiple output signals：Hydraulic sensors can output different types of signals, including analog signals and digital signals, to meet the needs of different applications.
● Anti-interference ability：Modern hydraulic sensors generally have anti-interference ability and can work stably in environments such as electromagnetic interference.
● Easy integration：Hydraulic sensors are easy to integrate with computer control systems and data acquisition systems to achieve automated control and data recording.
● Energy saving and environmental protection：Compared with other measurement technologies, hydraulic sensors generally have lower energy consumption, which helps reduce energy waste.
● Miniaturization：As technology continues to advance, the size of hydraulic sensors continues to decrease, making them easier to install and maintain.
Product Specification
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~5...400bar |
| overload pressure | 150%FS |
| Broken Pressure | 250%FS |
| output signal | 4~20mA, 0.5~4.5V,0-10V,0-2V,4.5-5.5v |
| accuracy | 1%FS (standard) 2%FS 0.5%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), >100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | 10ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |

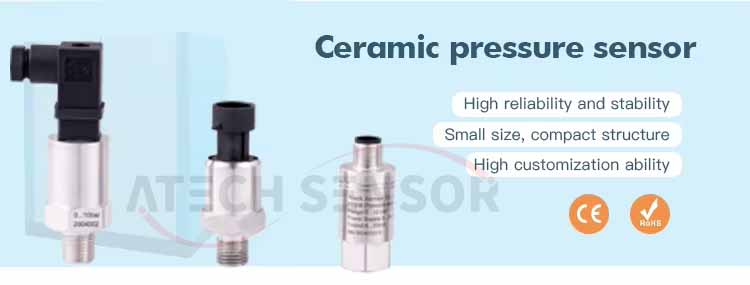

| material of pressure membrane | ceramic |
| material of housing | 1Cr18Ni9Ti |
| weight | 88g |
Related products PT-201 >>>> Contact Us
PT201
pressure ranges:0~2...1000bar
overload pressure:300%FS
output signal:4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V ,RS485, RS485&4-20mA
accuracy:0.5%FS (standard) 0.25%FS 0.1%FS
Product Dimensions
Product Features
● High precision：Hydraulic sensors are able to provide high-precision pressure measurements and are suitable for applications that require accurate control and monitoring.
● Durability：Hydraulic sensors generally have a long service life and can work in harsh environments, such as high temperature, low temperature, high pressure and corrosive media.
● Wide measurement range：Hydraulic sensors can cover a wide range of measurement ranges, from micro applications to large industrial applications.
● Real-time performance：Hydraulic sensors can provide real-time data feedback, which is very important for applications that require instant decision-making.
● Multiple output signals：Hydraulic sensors can output different types of signals, including analog signals and digital signals, to meet the needs of different applications.
● Anti-interference ability：Modern hydraulic sensors generally have anti-interference ability and can work stably in environments such as electromagnetic interference.
● Easy integration：Hydraulic sensors are easy to integrate with computer control systems and data acquisition systems to achieve automated control and data recording.
● Energy saving and environmental protection：Compared with other measurement technologies, hydraulic sensors generally have lower energy consumption, which helps reduce energy waste.
● Miniaturization：As technology continues to advance, the size of hydraulic sensors continues to decrease, making them easier to install and maintain.
Product Dimensions
Product Specification
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~5...400bar |
| overload pressure | 150%FS |
| Broken Pressure | 250%FS |
| output signal | 4~20mA, 0.5~4.5V,0-10V,0-2V,4.5-5.5v |
| accuracy | 1%FS (standard) 2%FS 0.5%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), >100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | 10ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | ceramic |
| material of housing | 1Cr18Ni9Ti |
| weight | 88g |
Related products PT-201 >>>> Contact Us
PT201
pressure ranges:0~2...1000bar
overload pressure:300%FS
output signal:4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V ,RS485, RS485&4-20mA
accuracy:0.5%FS (standard) 0.25%FS 0.1%FS
