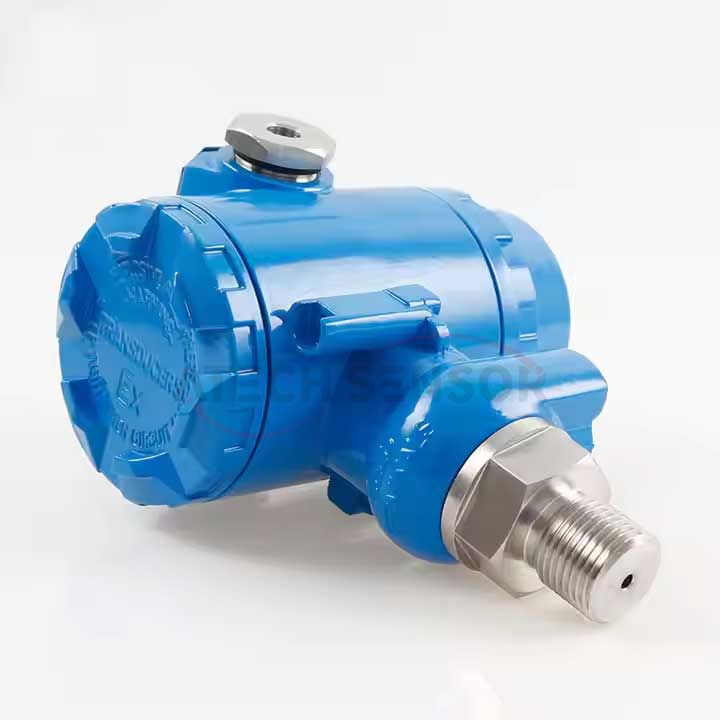

Products Description
Product Features
● The equipment of hydraulic sensors is very simple and convenient during transportation. It is also very convenient to operate and reliable in operation.
● Hydraulic sensors made of stainless steel can have excellent sealing and safety, and have strict anti-vibration tests to meet the vibration requirements of hydraulic machinery and engines. It can be used under complex electromagnetic environment conditions.
● Hydraulic sensors do not occupy a large area, and there is no problem replacing water towers and pressure tanks. The use of hydraulic sensors saves materials, working time, and steel, which can reduce more than half of the investment compared to the previous ones.
● The sensor will control the water pressure in a stable range during use, saving both water and electricity. Its entire process can be automatically controlled and automatically alarmed without manual operation.
● The hydraulic sensor has its own protection system, which will respond to problems such as overpressure, overheating, and overload.
Product Specification
| Pressure range | -1~0~0.1bar...1000 bar optional |
| Output | 4~20mA,0~5V,1~5V,0-10V |
| Power supply | 7~30V/12~30Vdc/15-30Vdc |
| Pressure port | G1/4",1/8"NPT, M20*1.5 or by customized |
| Accuracy | ≤±0.5%F.S,≤±0.25%F.S (Customized) |
| Working Temp | -40°C~+85°C |
| Compensation Temp | 0°C~50°C(standard) |
| Pressure Type | Gauge,Absolute,Negative,SealingPressure |
| Zero Temp Drift | 0.03%FS/°C(≤100kPa),0.02%FS/°C(>100kPa) |
| Safe Overload | 200%F.S |
| Burst Overload | 300%F.S |
| Filling oil | Silicon oil(standard);Fluorocarbon oil (Oxygen Services) |
| Response time | ≤10ms |
| Long-term Stability | ± 0.01% FS / year |
| Certificate | CE,Exiall CT6 Ga ,ATEX,RoHS |
Product Dimensions
