Products Description

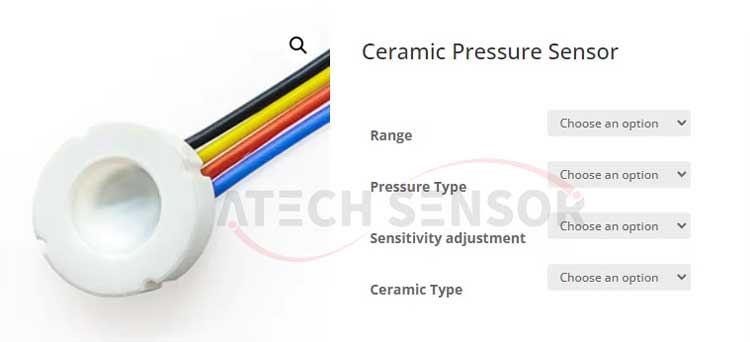

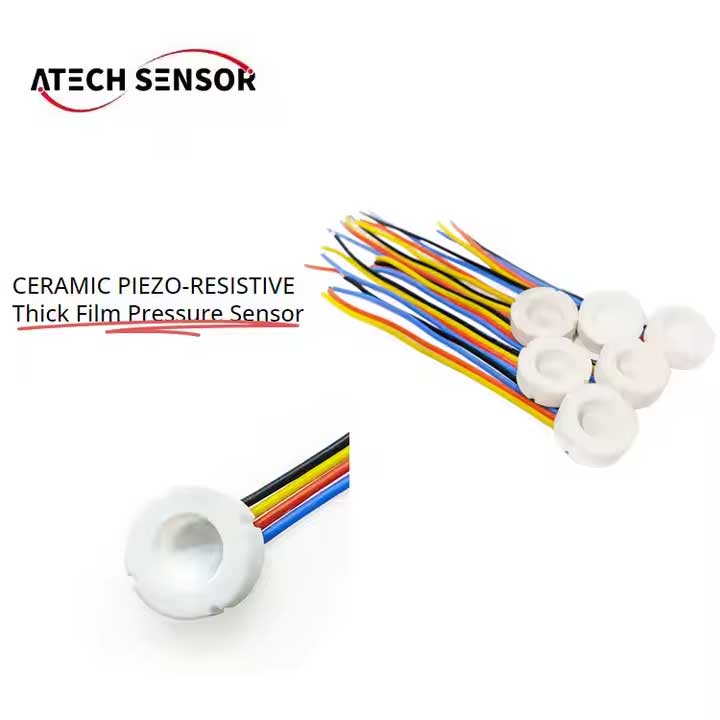

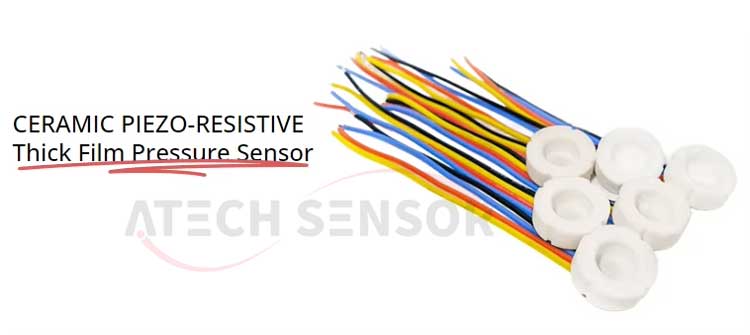

Ceramic Thick Film Pressure Sensor Cell (Monolithic type) is made with a ceramic base plate and diaphragm and work following the piezoresistive principle.
The Wheatstone bridge is screen printed on one side of the flush ceramic diaphragm which is, in turn, glued to the sensor’s body. The bridge faces the inside where a cavity is made and the diaphragm’s opposite side can therefore be exposed directly to the medium to be measured.
Application
● Cooling equipment & A/C system
● Automotive and vehicle
● Industrial process control
● HVAC system
● Refrigeration equipment
● Air conditioning unit
Product Features
● Pressure range 0.5bar-800bar
● Excellent resistance to corrosion and abrasion
● Absolute measurement available
● Thermally compensated
● Extended customization
● Extended choice of measuring ranges

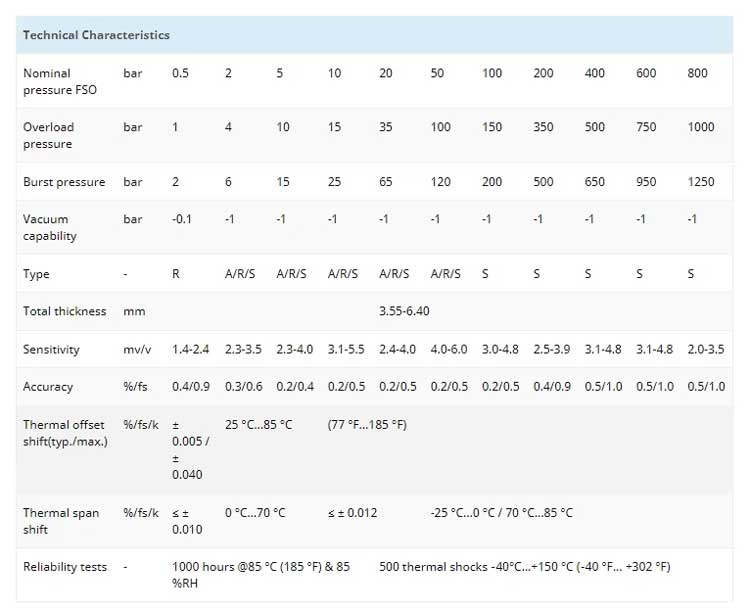

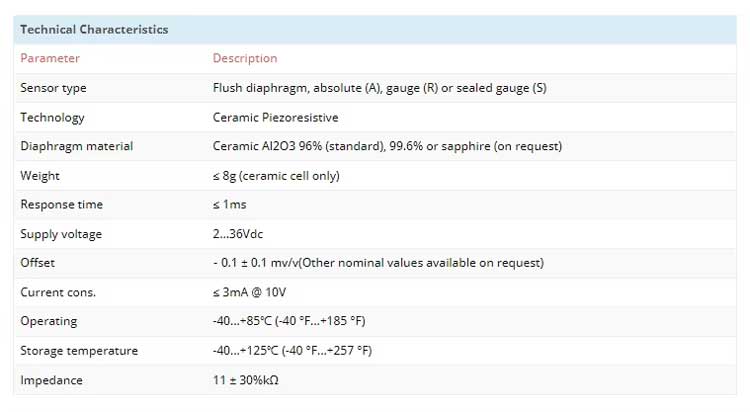

Product Specification
Product Dimensions
Product Features
● Pressure range 0.5bar-800bar
● Excellent resistance to corrosion and abrasion
● Absolute measurement available
● Thermally compensated
● Extended customization
● Extended choice of measuring ranges
Product Dimensions
Product Specification
