Products Description

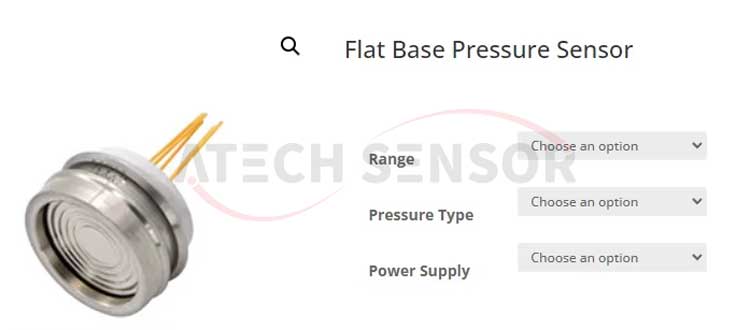

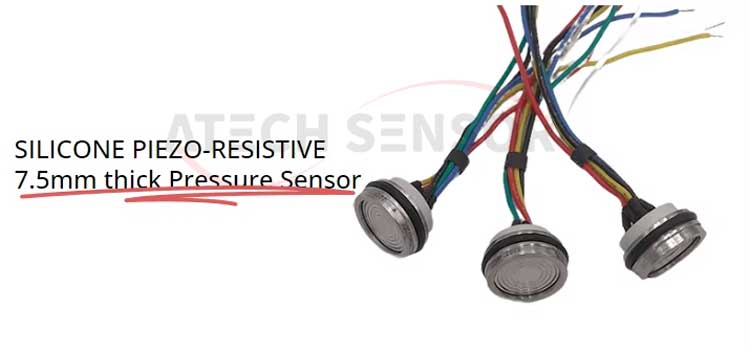

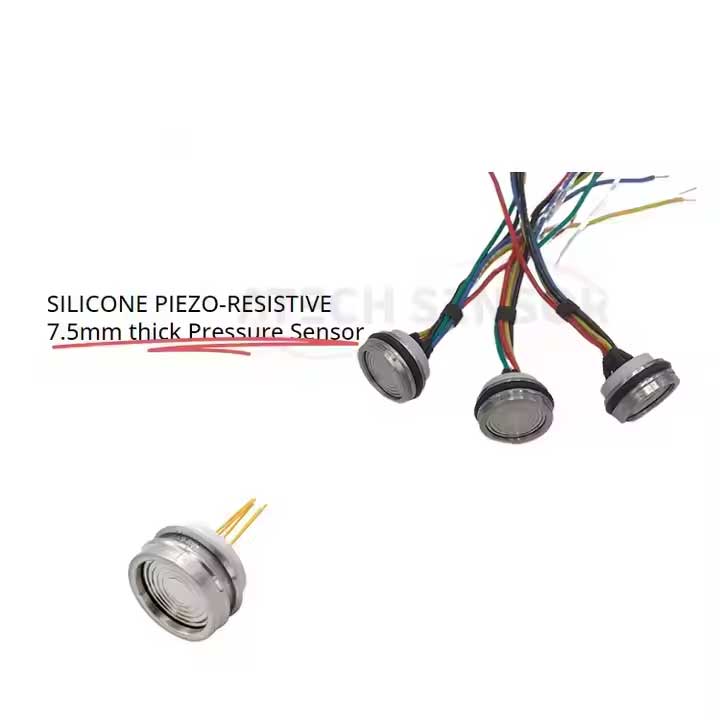

OEM Welded Flat Base (19mm*7.5mm)Pressure Sensor uses a high-sensitivity piezoresistive silicon die as sensing component, which is protected against ambient influences by housing sealed with a concentrically corrugated diaphragm. Inside the housing, the filled silicone oil assures the measured pressure can be transmitted onto silicon die and then transform the pressure to electric signal.
Welded Flat Base Pressure Sensor is available ranges: -100kpa-10KPa-3.5MPa.
Application
● Industrial process control
● Level measurement
● Gas, liquid pressure measurement
● Pressure checking meter
● Pressure calibrator
● Liquid pressure system and switch
● Cooling equipment & A/C system
● Aviation and navigation inspection
Product Features
● Pressure range -100kpa-10Kpa-3.5Mpa
● Gauge,Absolute,Sealed gauge
● Constant Current: 1.5mA
● Voltage power supply: 5v/10v
● Isolated construction, measure various media
● Full Stainless Steel 316
● Wide temperature compensation -10℃~80℃
● Long-term stability ±0.1%FS/year

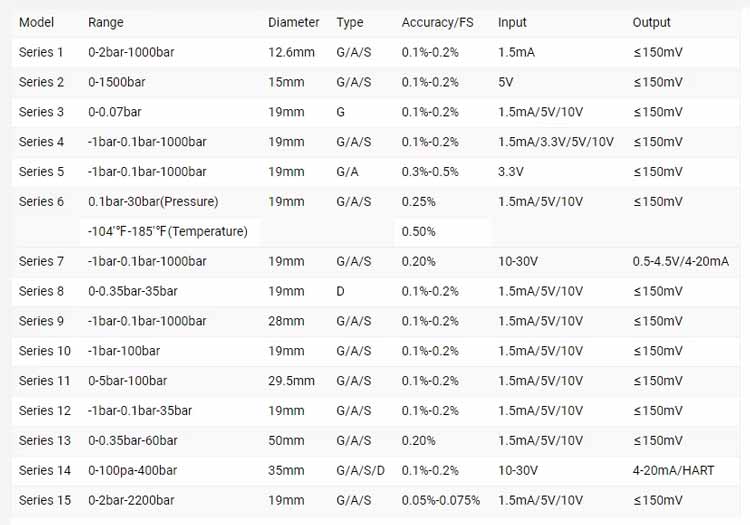

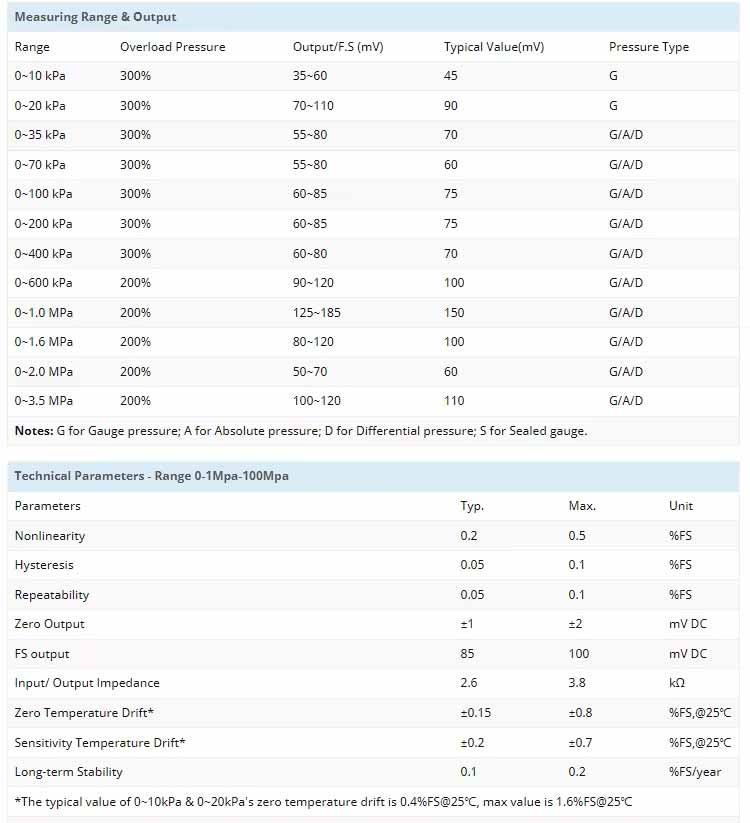

Product Specification
Product Dimensions
Product Features
● Pressure range -100kpa-10Kpa-3.5Mpa
● Gauge,Absolute,Sealed gauge
● Constant Current: 1.5mA
● Voltage power supply: 5v/10v
● Isolated construction, measure various media
● Full Stainless Steel 316
● Wide temperature compensation -10℃~80℃
● Long-term stability ±0.1%FS/year
Product Dimensions

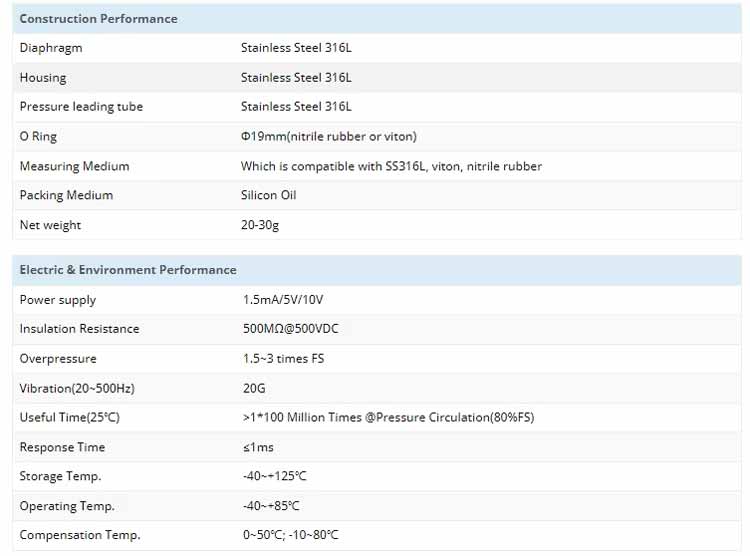

Product Specification
