Products Description

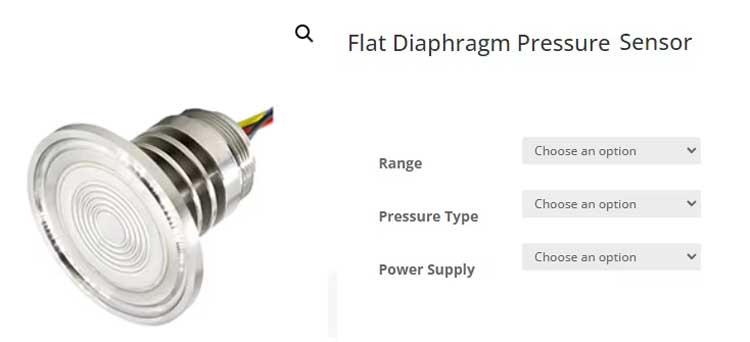

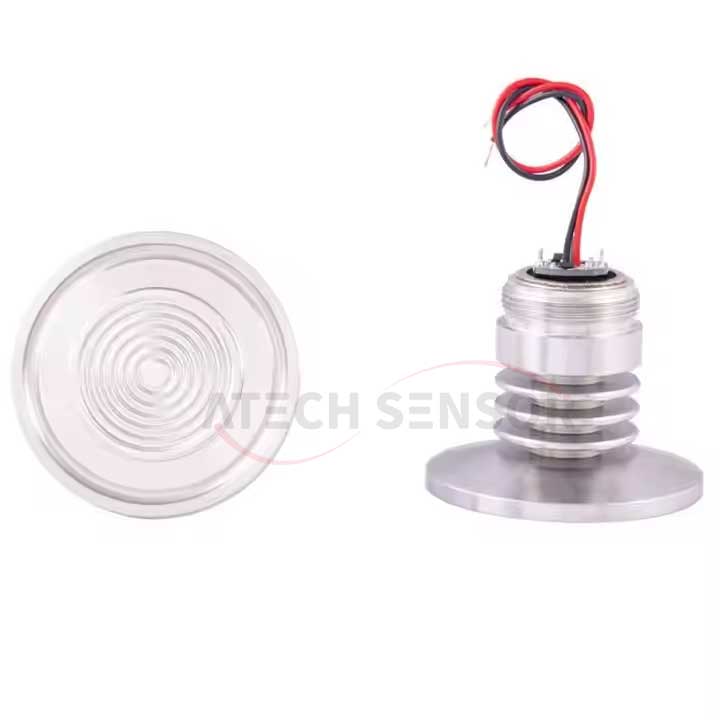

Flat Diaphragm Pressure Sensor design with Φ50mm diaphragm and uses a high-sensitivity piezoresistive silicon die as sensing component, which is protected against ambient influences by housing sealed with a concentrically corrugated diaphragm. Inside the housing, the filled silicone oil assures the measured pressure can be transmitted onto silicon die and then transform the pressure to electric signal.
It is available ranges from 35Kpa to 6MPa.
Application
● Industrial process control
● Level measurement
● Gas, liquid pressure measurement
● Pressure checking meter
● Pressure calibrator
● Liquid pressure system and switch
● Cooling equipment & A/C system
● Aviation and navigation inspection
Product Features
● Pressure range 0.035 ~ 6Mpa
● Gauge,Absolute,Sealed gauge
● Constant current/Voltage power supply
● Isolated construction, measure various media
● φ5omm diameter pressure sensor
● Full Stainless Steel 316
● Wide temperature compensation -10℃~80℃
● Long-term stability ±0.1%FS/year

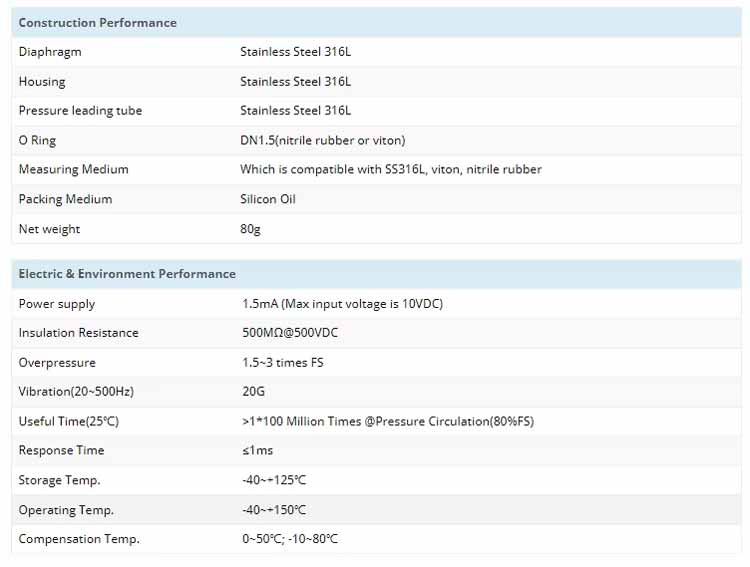

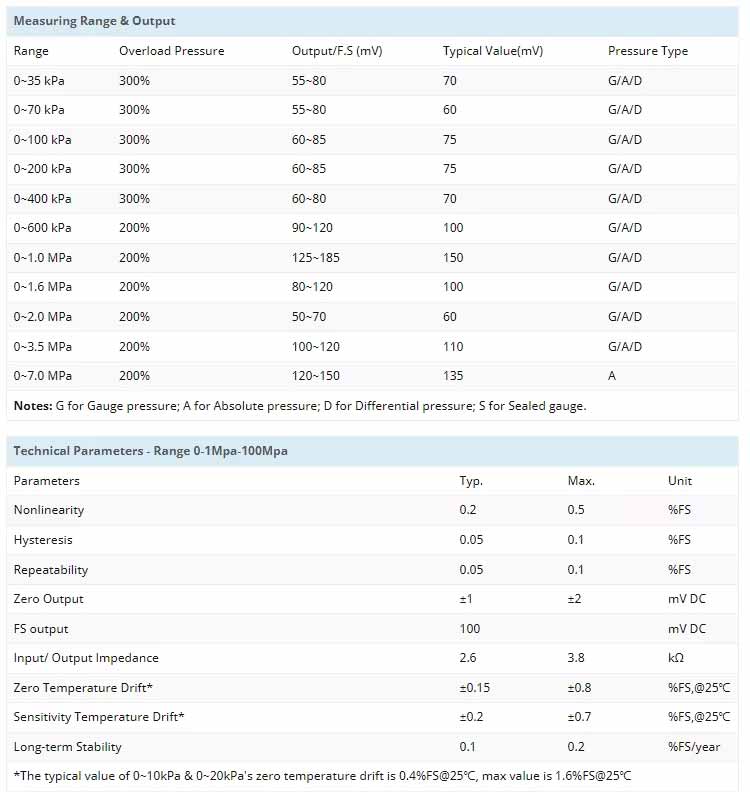

Product Specification
Product Dimensions
Product Features
● Pressure range 0.035 ~ 6Mpa
● Gauge,Absolute,Sealed gauge
● Constant current/Voltage power supply
● Isolated construction, measure various media
● φ5omm diameter pressure sensor
● Full Stainless Steel 316
● Wide temperature compensation -10℃~80℃
● Long-term stability ±0.1%FS/year
Product Dimensions
Product Specification
