Products Description

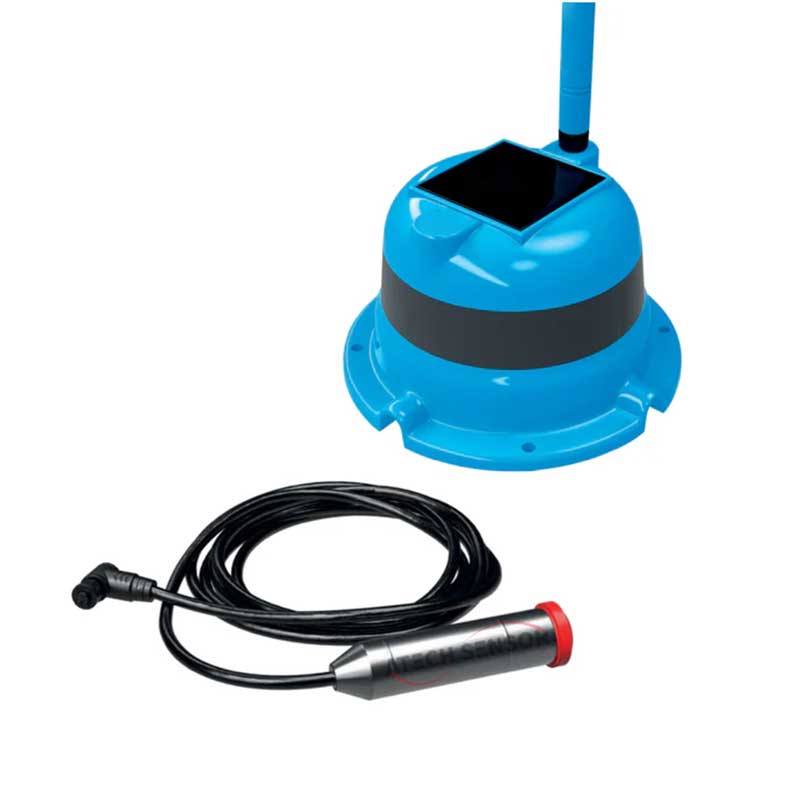

The Smart Tank Transmitter is the device in the system that collects water level data and transmits it back to the WiFi LCD Keypad or WiFi Gateway. Up to 12 Tank Transmitters can be connected to a single system, making complex sites easy to manage. The product is engineered to ensure excellent long-term performance in even the most extreme outdoor environments. Solar powered, virtually maintenance free.

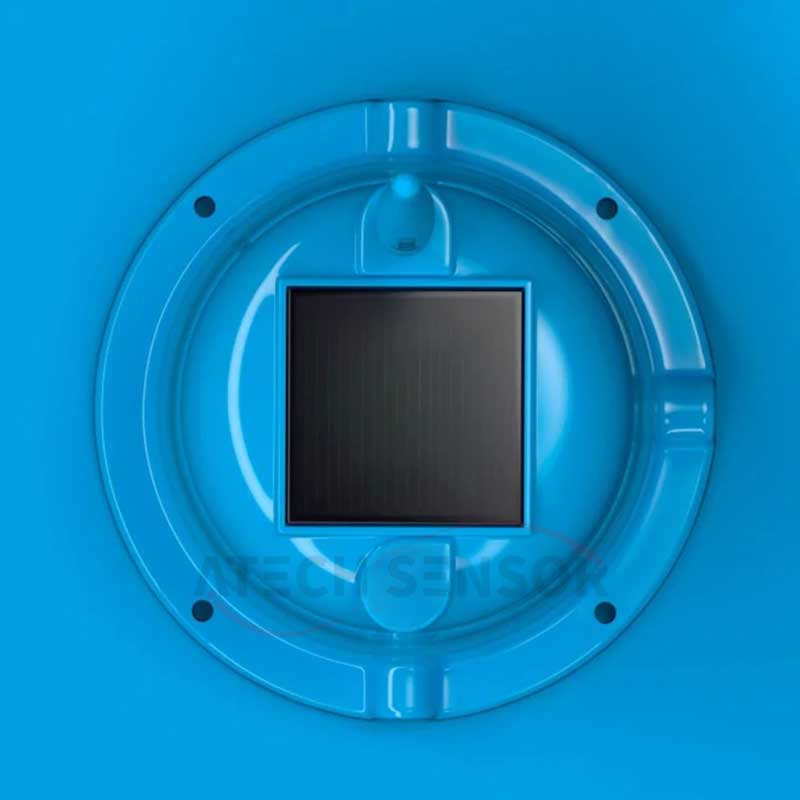

The Tank Transmitter is designed to be easily mounted on the tank, near the access point of the water sensor cable. Once paired with the WiFi LCD Keypad or WiFi Gateway, the sensor can be lowered to the bottom of the tank and the device secured using the provided mounting hardware. The product is powered via a high efficiency solar panel, but for installations without access to sunlight, the unit can be powered via the AC power source provided in the kit.
Product Features
● Ruggedised marine grade materials and construction
● High efficiency mono-crystalline solar panel
● Powerful Lithium-ion rechargeable battery
● Long range wireless performance, tested up to 10km
● Up to 12 tank wireless solar powered transmitters and 12 pump controllers can be added
● The system learns your water usage to predict your time to empty
● Custom alerts and alarms for full visibility of your system status
● Trend indicator for a “one glance” indication of tank status
● Fully programmable automatic pump operation
● Name your tanks and pumps for ease of reference
● Set the density for measurement for different fluids
● Convenient timers to assist with tank maintenance
● Multiple touchscreen displays can be added to a single system
● Starter Pack provides everything you need to get up and running
● Simple DIY installation and operation
Product Specification
Material Marine grade UV resistant ASA plastic construction Range High power LoRa wireless technology offering ranges up to 10km Design Fully sealed IP68+ weatherproof robust design Supply power High efficiency monocrystalline solar panel Battery Powerful Lithium-ion battery with smart power management
Product Dimensions
Product Features
● Ruggedised marine grade materials and construction
● High efficiency mono-crystalline solar panel
● Powerful Lithium-ion rechargeable battery
● Long range wireless performance, tested up to 10km
● Up to 12 tank wireless solar powered transmitters and 12 pump controllers can be added
● The system learns your water usage to predict your time to empty
● Custom alerts and alarms for full visibility of your system status
● Trend indicator for a “one glance” indication of tank status
● Fully programmable automatic pump operation
● Name your tanks and pumps for ease of reference
● Set the density for measurement for different fluids
● Convenient timers to assist with tank maintenance
● Multiple touchscreen displays can be added to a single system
● Starter Pack provides everything you need to get up and running
● Simple DIY installation and operation
Product Dimensions
Product Specification
Material Marine grade UV resistant ASA plastic construction Range High power LoRa wireless technology offering ranges up to 10km Design Fully sealed IP68+ weatherproof robust design Supply power High efficiency monocrystalline solar panel Battery Powerful Lithium-ion battery with smart power management
