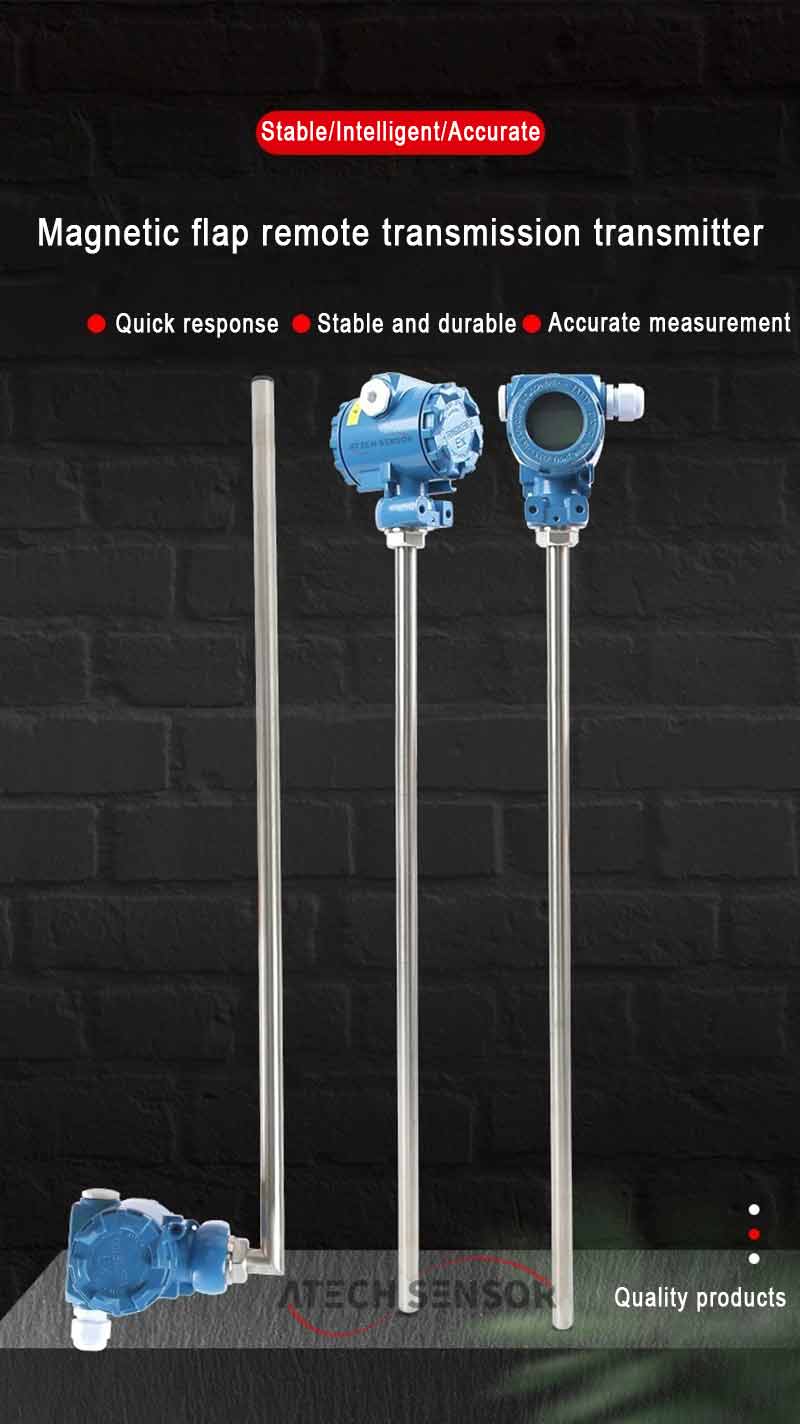

Products Description
The magnetic flap level gauge can be used to directly observe the liquid level height of the medium in various containers. It is suitable for liquid level indication in industrial fields such as petroleum and chemical industry. The level gauge has a simple structure, intuitive and clear observation, no blockage, no leakage, easy installation and simple maintenance. The upper and lower mounting flanges of the glass plate level gauge are connected to the container to form a communicating vessel, and the actual height of the liquid level in the container can be directly observed through the glass plate.
Product Features
● Stable and durable, fast response, accurate measurement
● Widely used, accurate measurement

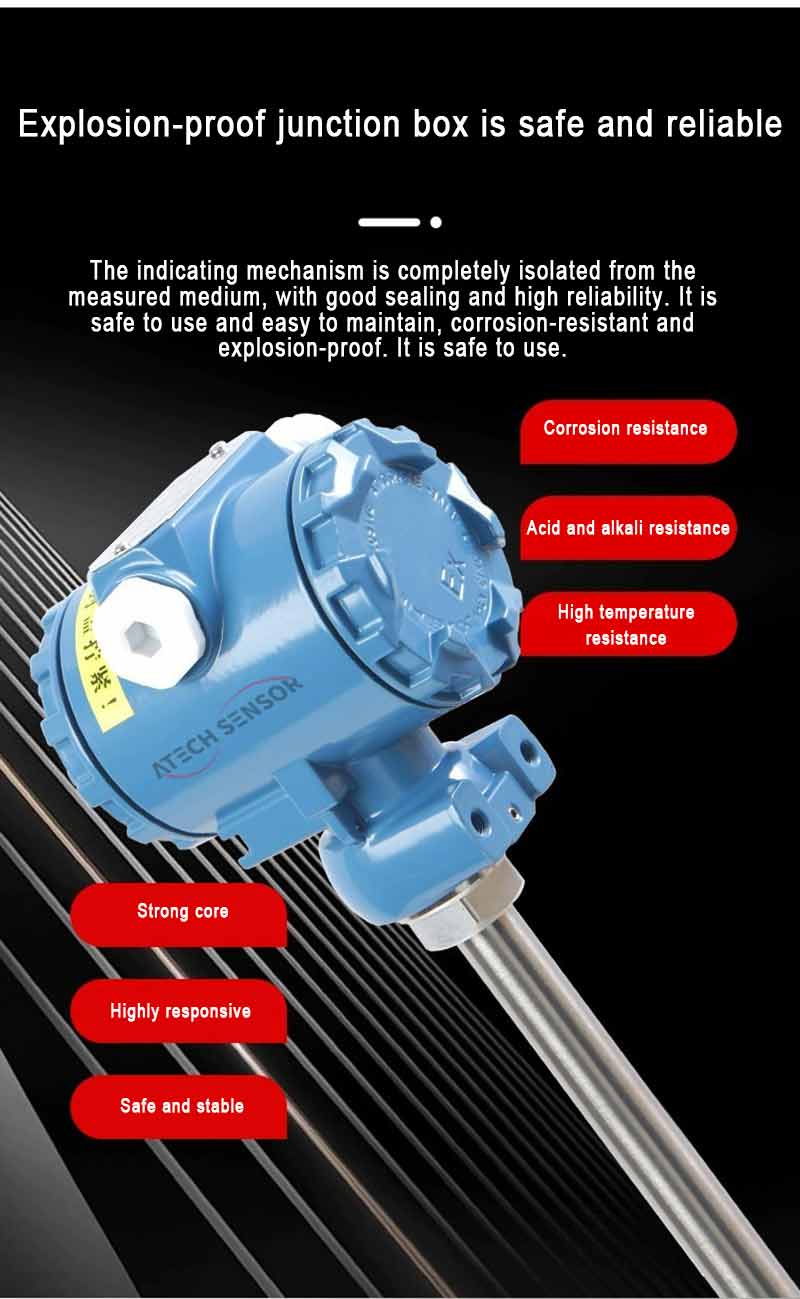

● Explosion-proof wire junction box, safe and reliable
● Completely sealed, corrosion-resistant, acid-resistant, alkali-resistant, and high-temperature-resistant

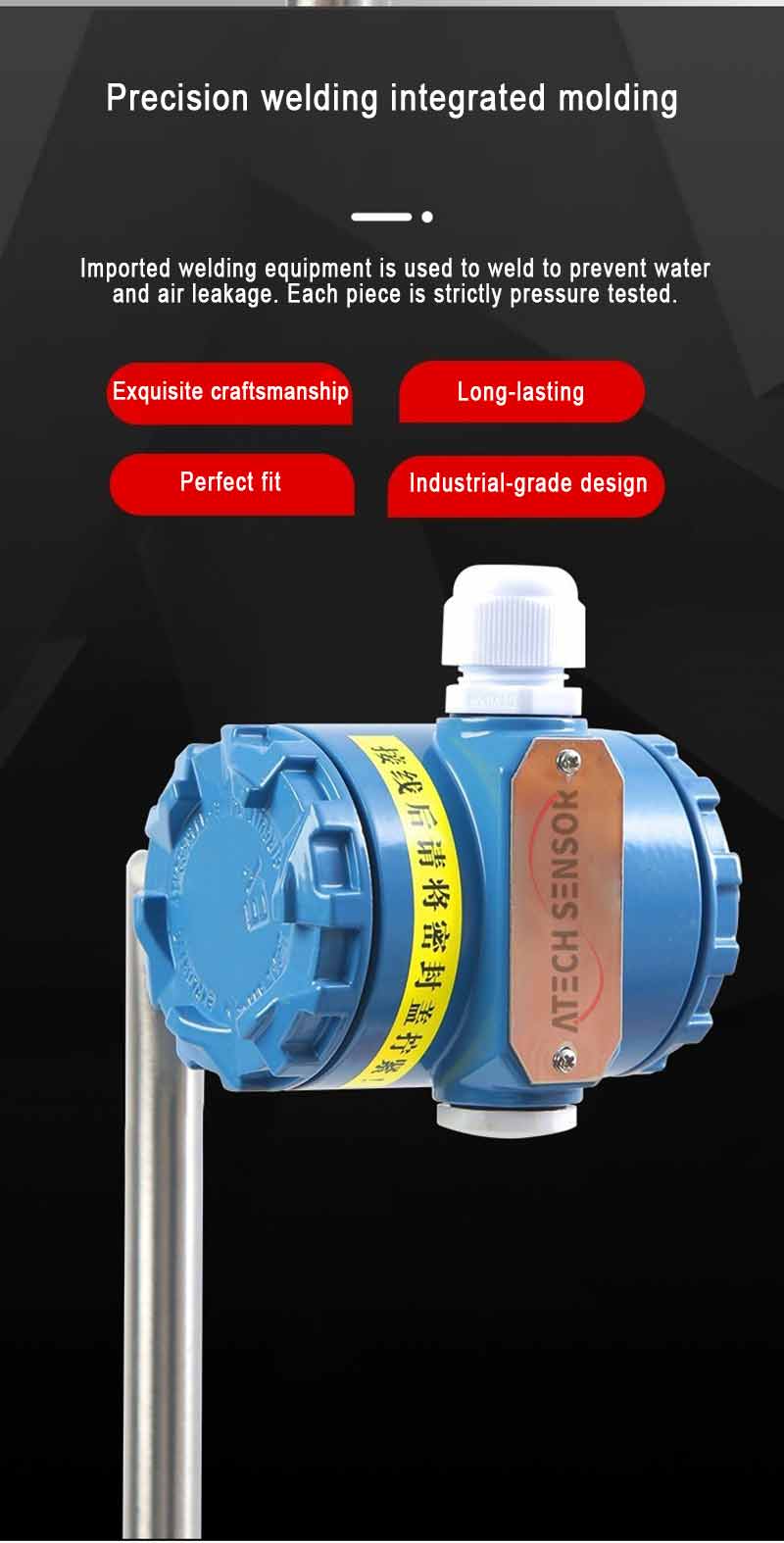

● Precision welding, one-piece molding, tight fit

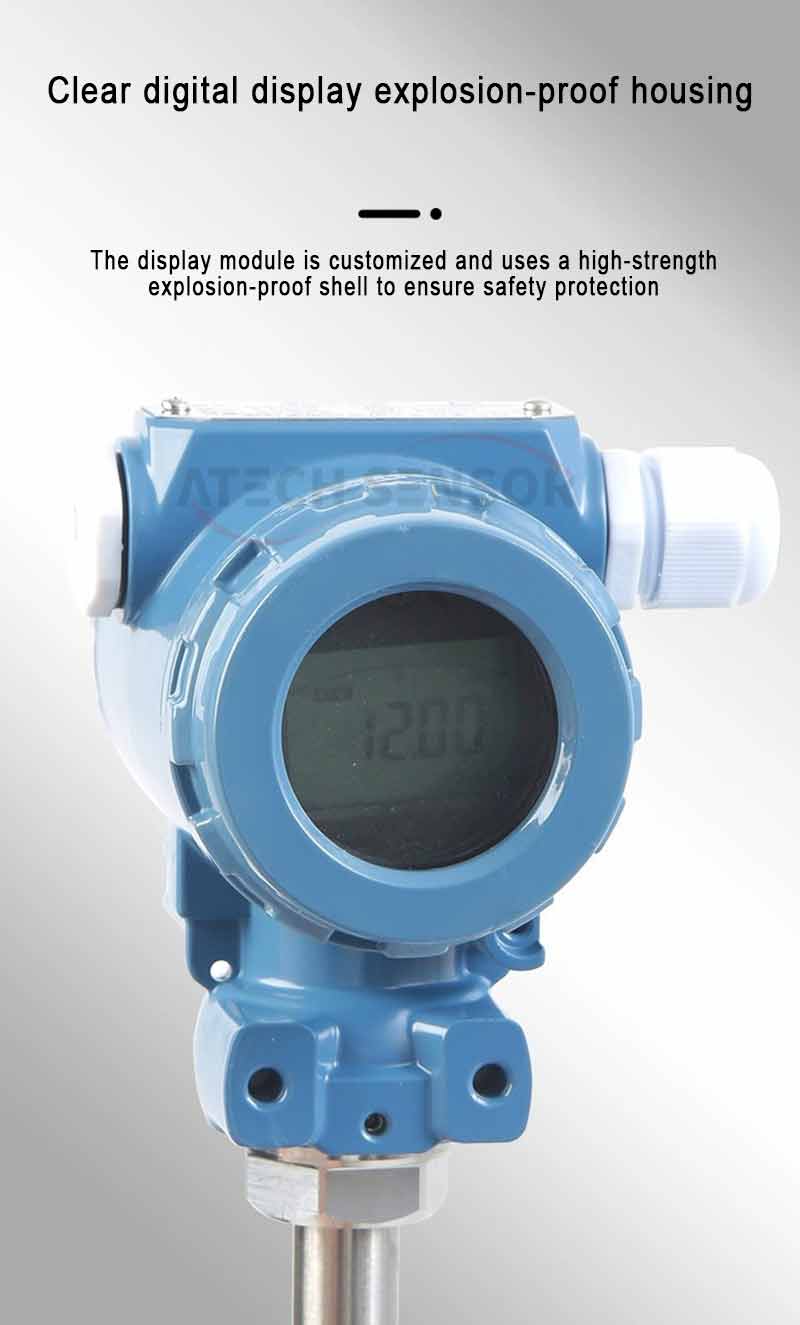

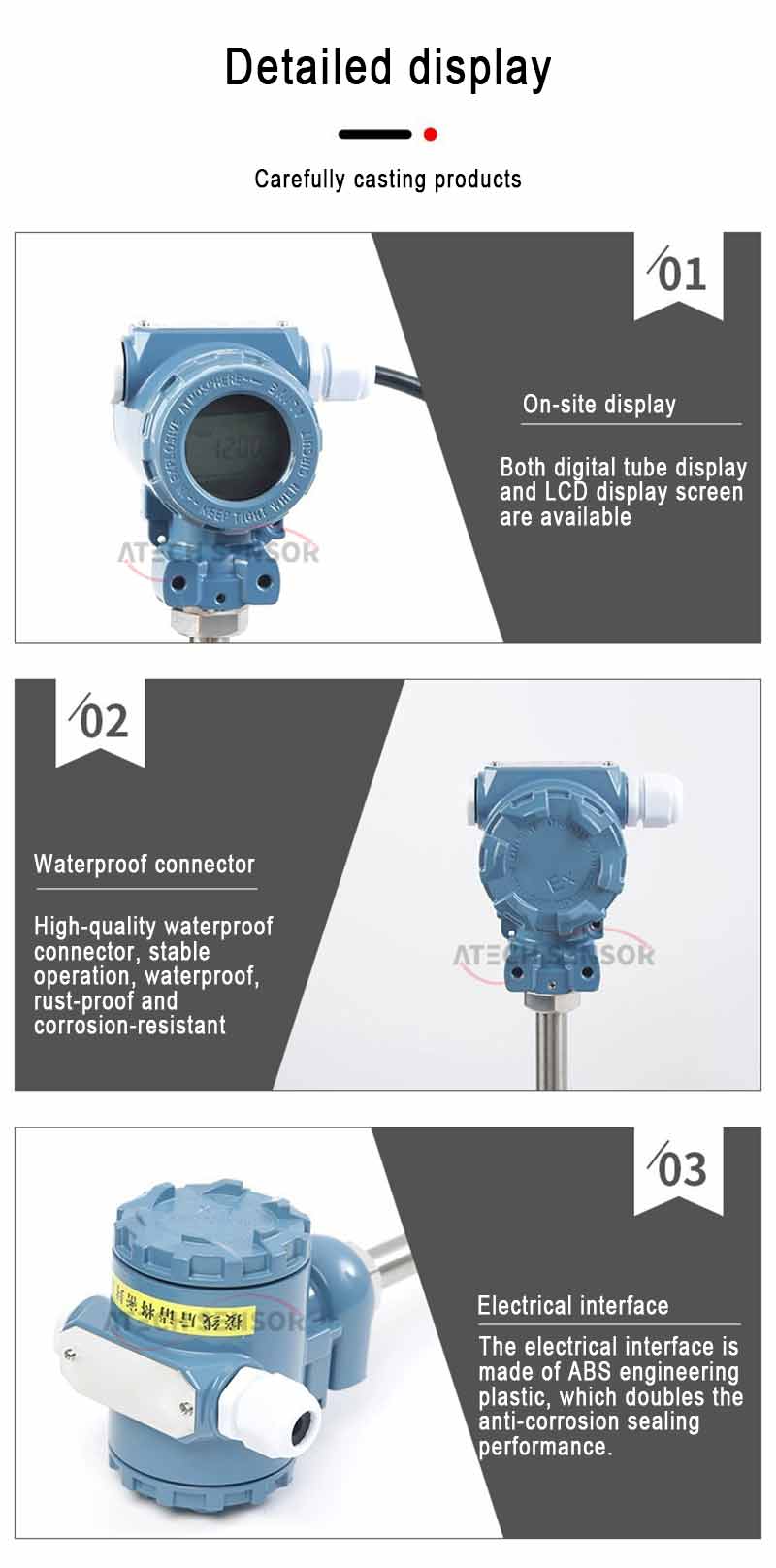

● Digital tube display and LCD display optional
● High-quality waterproof connector, waterproof and rust-proof
● The electrical interface is made of ABS plastic material, which doubles the performance
Product Specification
| Product Name | Magnetic flap level gauge |

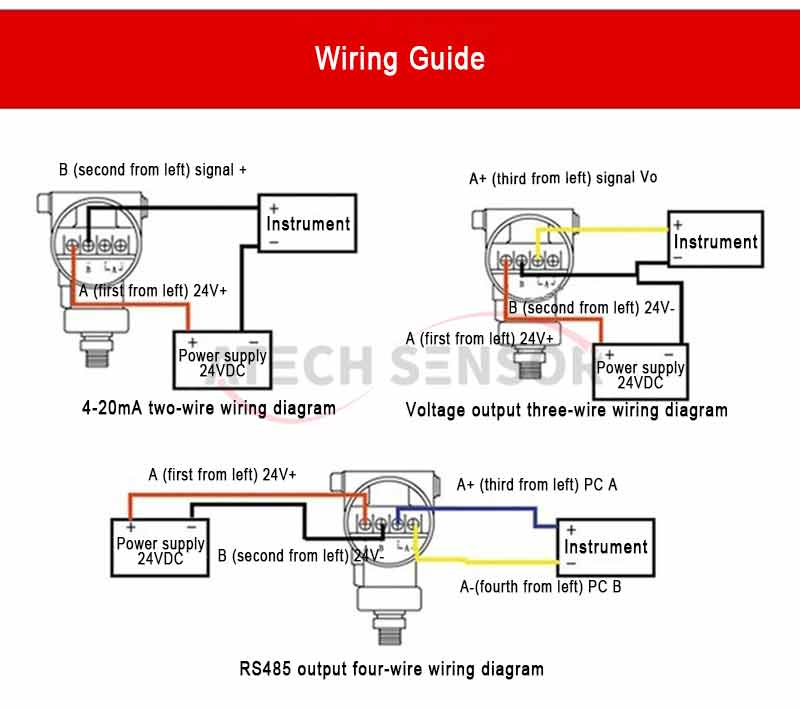

| Output signal | 4-20mA (default) Customized 485, HART, 0-5V, 0-10V |
| Power supply | DC12V~DC36V |
| Measuring range | 40~300m (beyond can be customized) |
| Material | Main tube 304 stainless steel, shell cast aluminum |

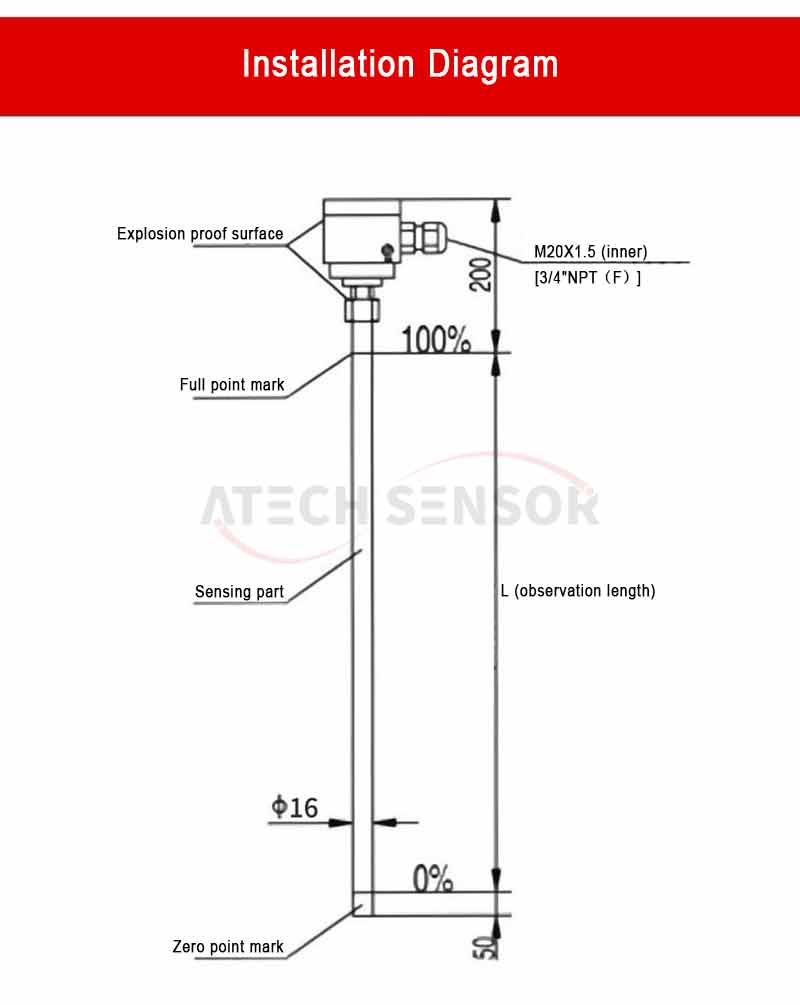

Product Dimensions
Product Features
● Stable and durable, fast response, accurate measurement
● Widely used, accurate measurement
● Explosion-proof wire junction box, safe and reliable
● Completely sealed, corrosion-resistant, acid-resistant, alkali-resistant, and high-temperature-resistant
● Precision welding, one-piece molding, tight fit
● Digital tube display and LCD display optional
● High-quality waterproof connector, waterproof and rust-proof
● The electrical interface is made of ABS plastic material, which doubles the performance
Product Dimensions
Product Specification
| Product Name | Magnetic flap level gauge |
| Output signal | 4-20mA (default) Customized 485, HART, 0-5V, 0-10V |
| Power supply | DC12V~DC36V |
| Measuring range | 40~300m (beyond can be customized) |
| Material | Main tube 304 stainless steel, shell cast aluminum |
