Products Description

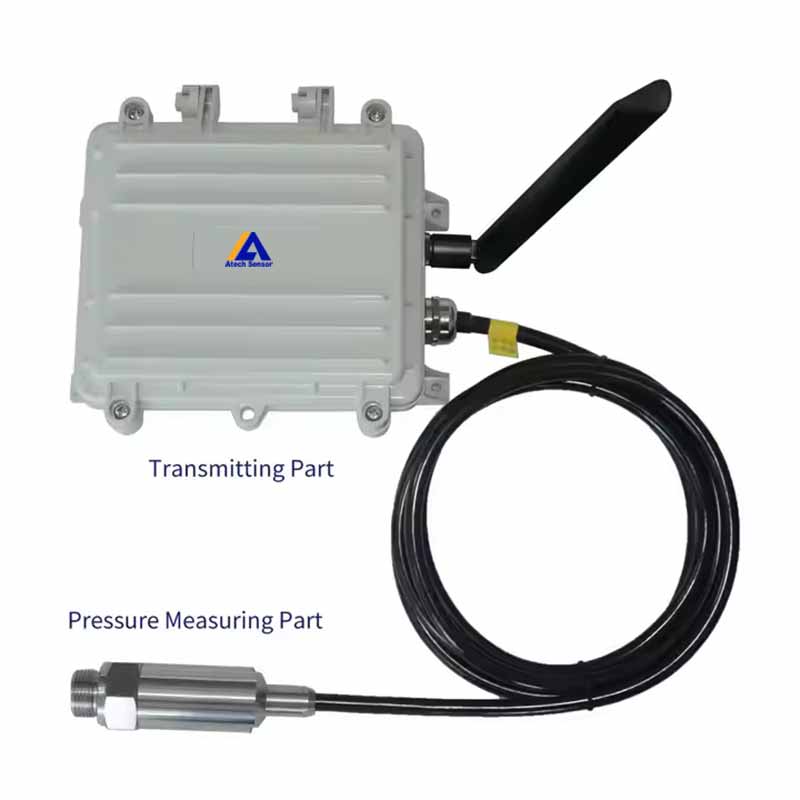

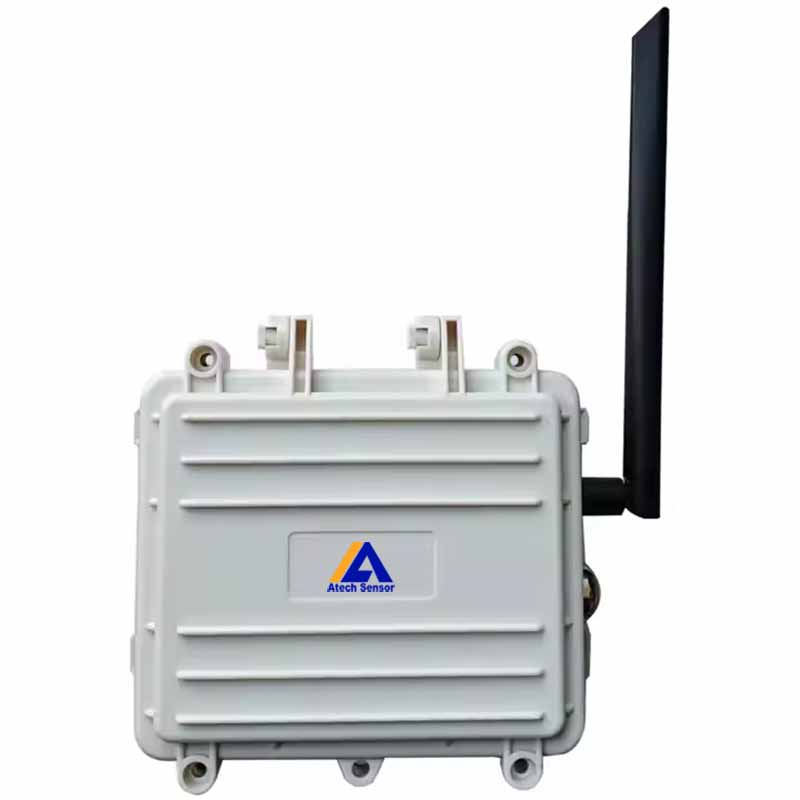

The AIGS-02 LoRaWAN wireless DTU monitors AI signals on site. It reports signal values to the cloud platform at configurable intervals and sends alarm messages to the platform when the signal exceeds the alarm threshold or changes. Data is sent via LoRaWAN communication technology, which features long-distance communication and low power consumption. The DTU outputs 5VDC power to power on-site devices.
The device can be configured using a PC setup tool via the onboard TTY serial port. Users can configure alarm thresholds, network access methods OTAA/ABP, network access parameters, etc.

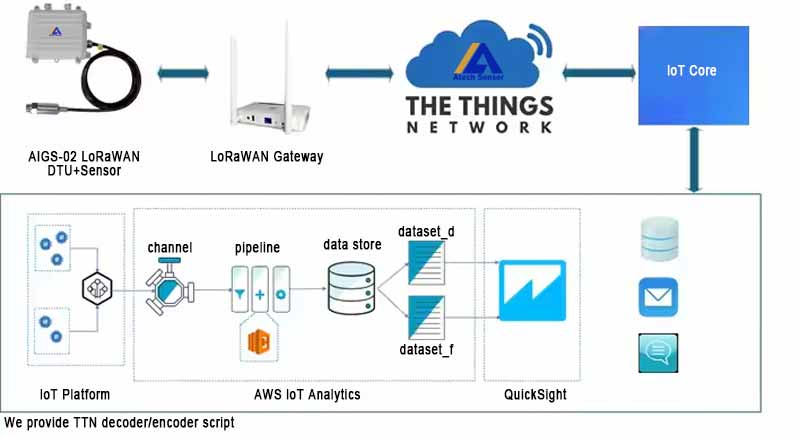

Through the corresponding gateway, the device can be connected to various network servers and IoT platforms such as TTN, AWS, etc.
The battery-powered wireless DTU adopts a low-power design, has the characteristics of long communication distance, long battery life, high measurement accuracy, and no wiring required, and is widely used in AI signal monitoring occasions.
Product Features
● Lithium thionyl chloride battery(19AH) powered
● LoRaWAN compatible
● Class A/Class C device supported
● Heartbeat report and event drive report
● Outputs 5VDC to power field device
● Supports configuration from cloud platform
● Supports configuration by serial port
● Supports integration with TTN platform
Product Specification
Name | Parameters | Remarks |
Frequency | EU868/US915/CN779/EU433/AU915/CN470/AS923/KR920/IN865 | |
Access Network Mode | OTAA/ABP | |
Antenna | External antenna | |
Supported Platform | TTN | |
TX Power | 20dbm | |
Battery | ER34615 | 19000mAh(Non-rechargeable) |
Battery lifespan | 3~5 years | Related with sample period and reporting period |
Max current | <200mA | |
Protection | IP66 | |
Sampling time | Default 5min | Configurable |
Working temperature | (-20~+85)ºC | |
Size | 164X148X70 | mm |

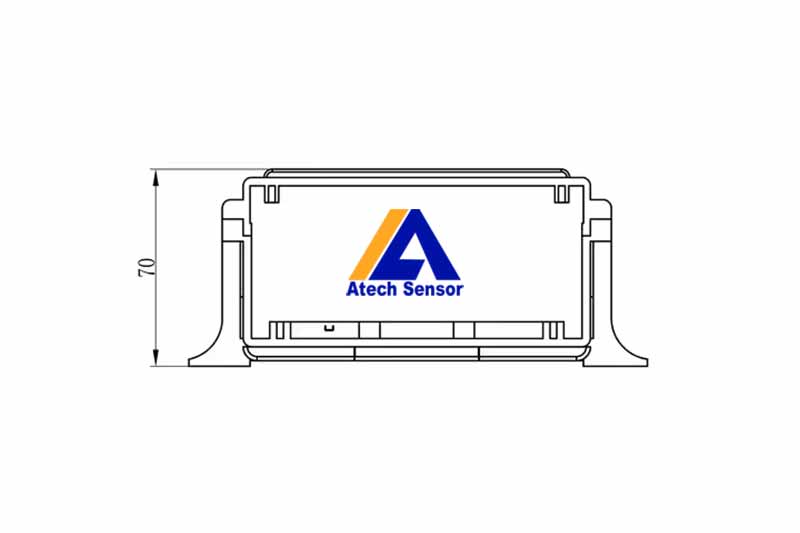

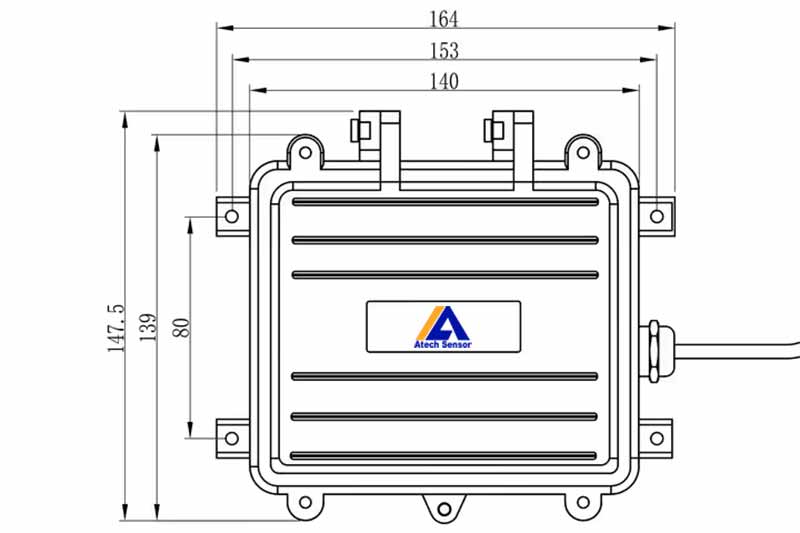

Product Dimensions
