Products Description

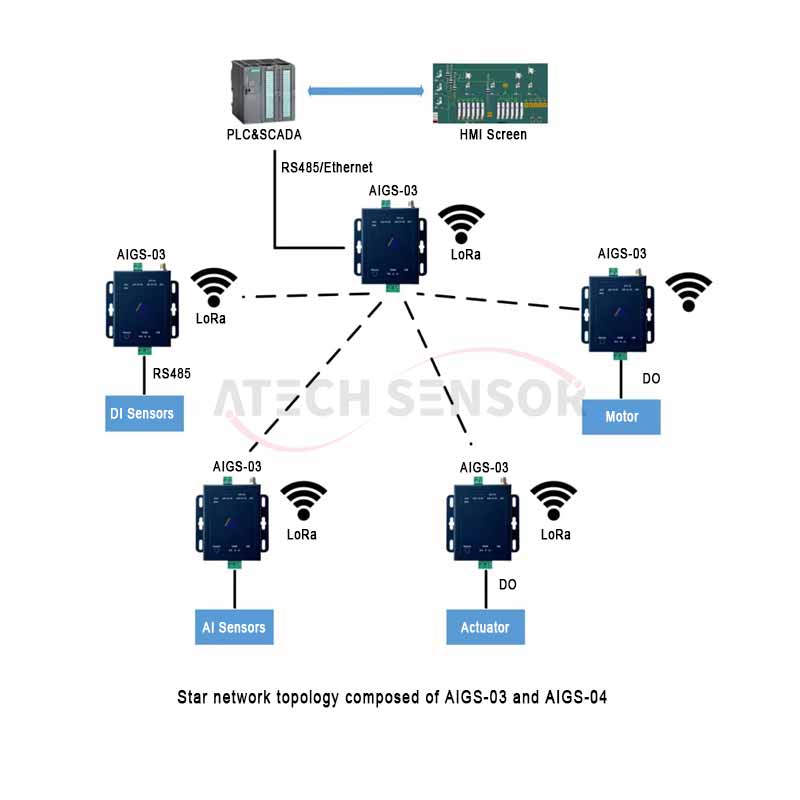

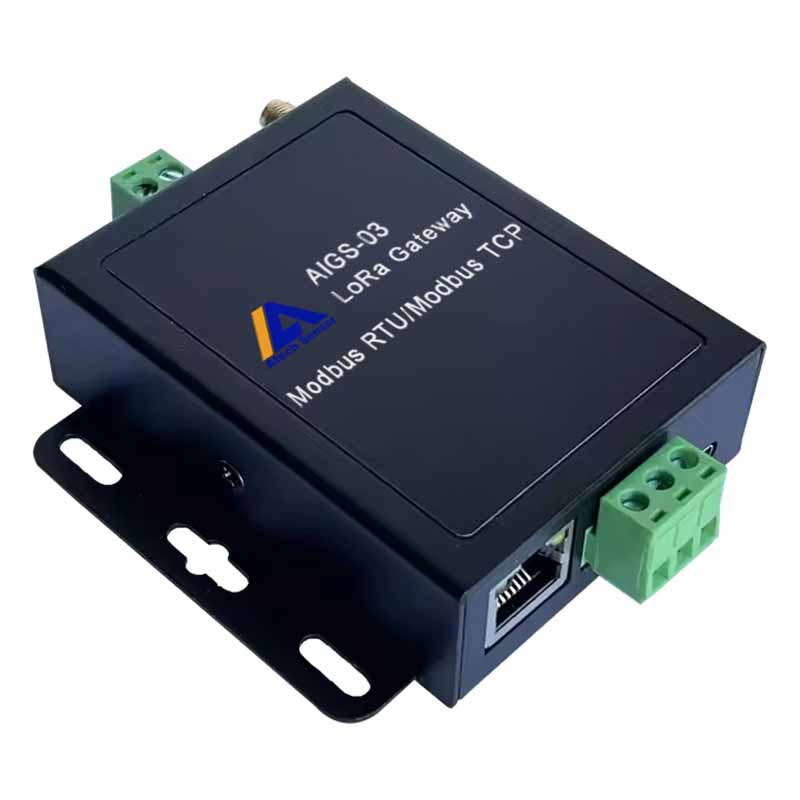

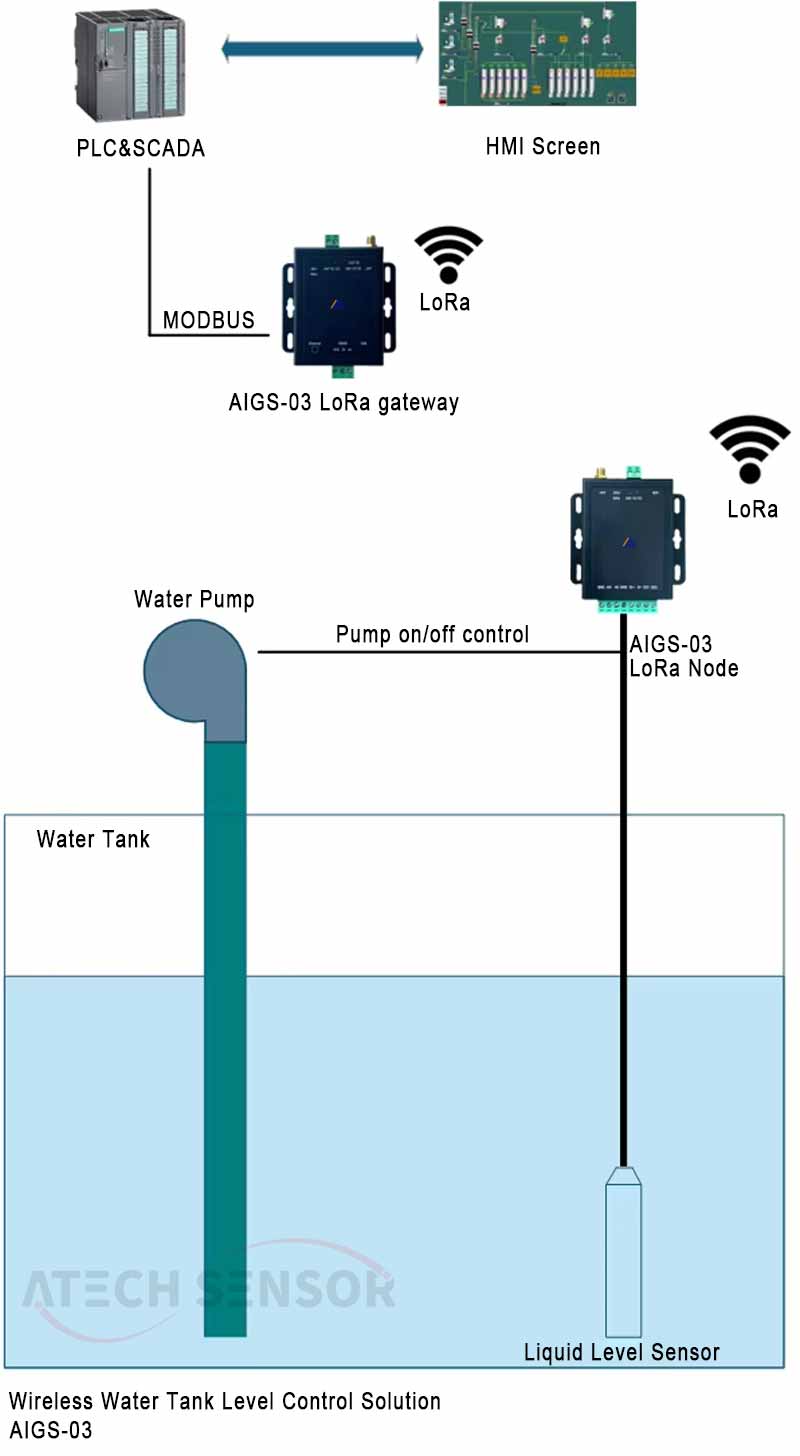

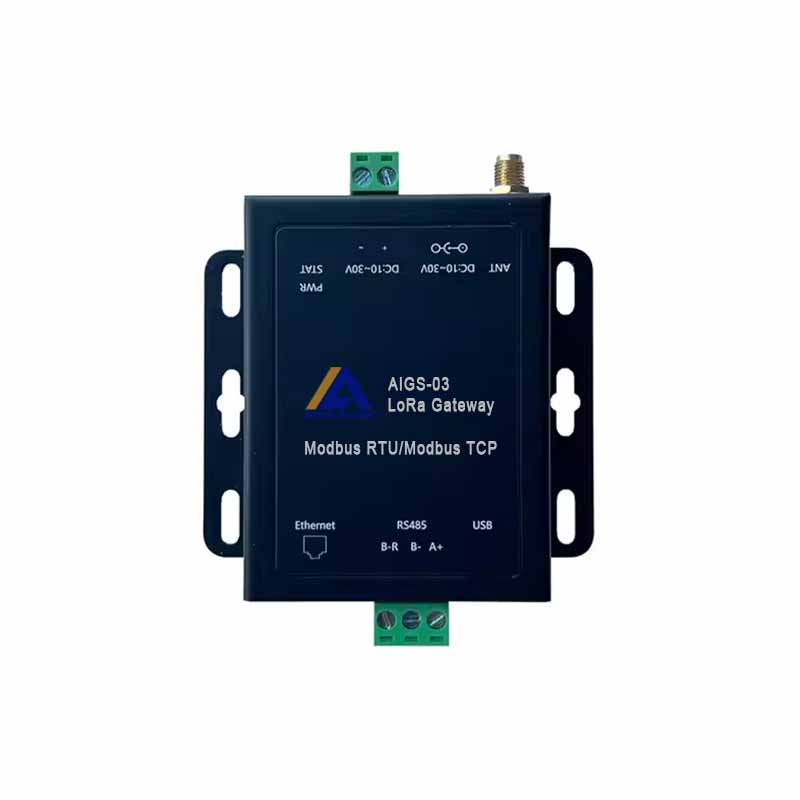

Designed for wireless LoRa networks, the AIGS-03 LoRa gateway receives data from LoRa nodes and outputs it via RS485/Ethernet. PLC/SCADA systems can access this data via Modbus RTU/Modbus TCP. LoRa nodes actively report sensor data to the AIGS-03 gateway periodically. The gateway collects this data and stores it in a register table, which can be accessed to retrieve the sensor data. In addition, the output value of the LoRa node can be controlled by writing to the gateway's registers.
AIGS-03 supports 433/470/868/915 MHz frequencies, and its transmission range exceeds 5 kilometers, with the characteristics of long distance and low power consumption.
AIGS-03 LoRa gateway is widely used in industrial automation, smart agriculture, smart cities and smart buildings.
Product Features
● Configurable channels
● USB-based parameter configuration
● USB-enabled MCU program upgrades
● Long-range and low power consumption
● Supports Modbus RTU / Modbus TCP protocol
● Both RS485 and network port are electrically isolated
Product Specification

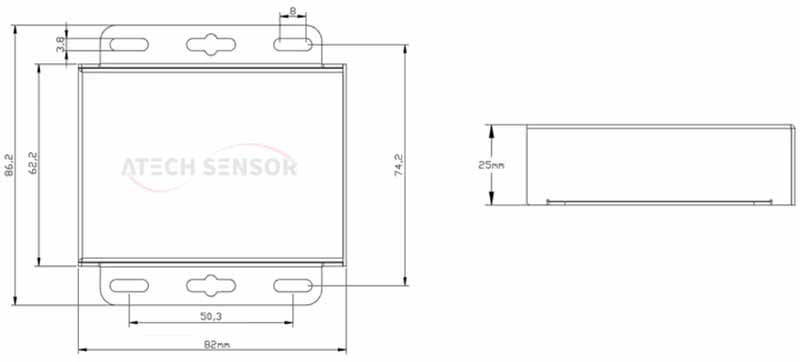

Product Dimensions
Product Features
● Configurable channels
● USB-based parameter configuration
● USB-enabled MCU program upgrades
● Long-range and low power consumption
● Supports Modbus RTU / Modbus TCP protocol
● Both RS485 and network port are electrically isolated
Product Dimensions
Product Specification
