Products Description

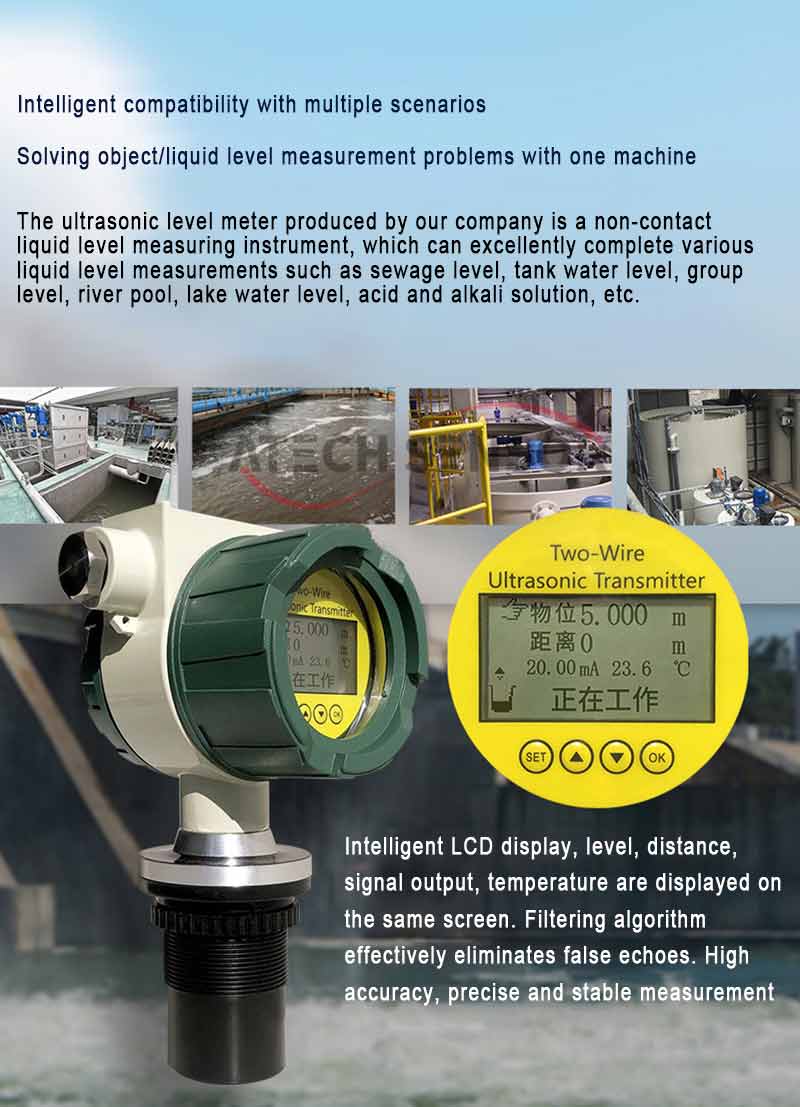

Ultrasonic level meter is a digital level meter controlled by a microprocessor. During measurement, ultrasonic pulses are emitted by the sensor (transducer), and the sound waves are received by the same sensor after being reflected by the liquid surface, and converted into electrical signals by piezoelectric crystals. The distance from the sensor to the surface of the measured liquid is calculated by the time between the emission and reception of the sound waves. Due to the use of non-contact measurement, the measured medium is almost unlimited, and it can be widely used to measure the height of various liquids and solid materials.
Product Features
● High frequency signal, temperature measurement
● The electrical interface is made of ABS material, which is impact-resistant and aging-resistant
● The overall seal prevents moisture from affecting the function

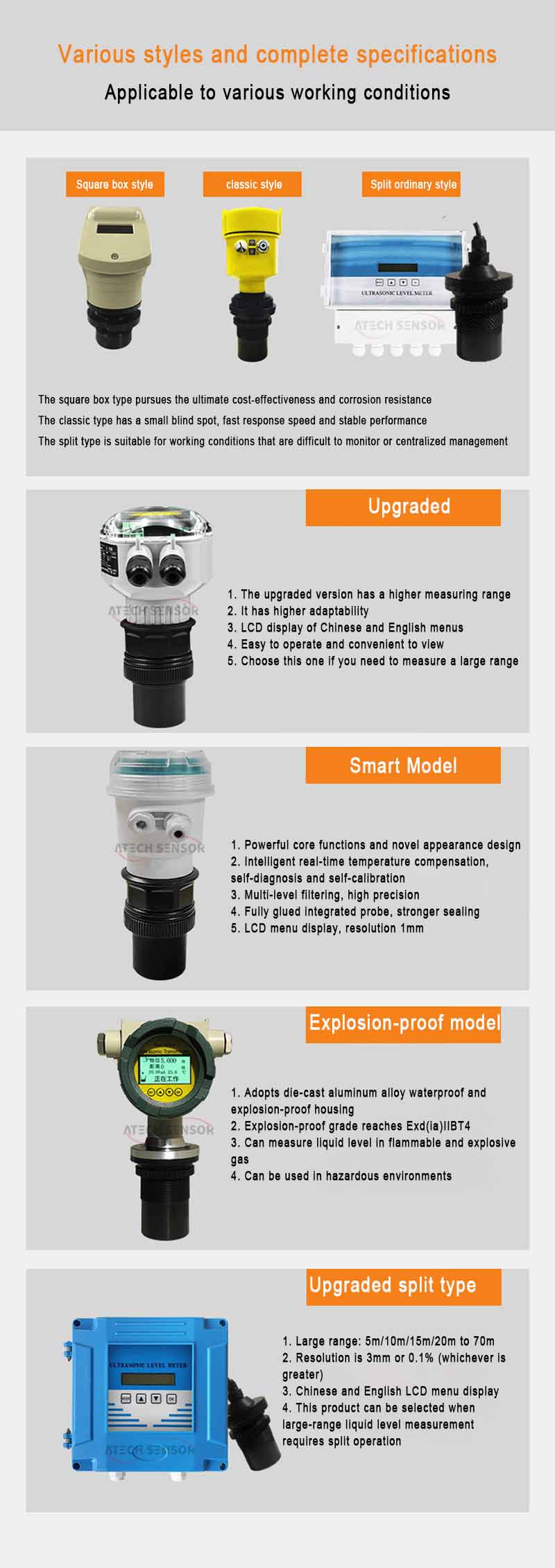

● Various styles and various working conditions
● LED liquid crystal display, data is clear at a glance
● Filtering algorithm, effectively eliminates false echoes
Product Specification
| Product Name | Ultrasonic liquid level gauge |
| Measuring range | 5m,10m,15m,20m,30m,40m,50m,60m |
| Measurement accuracy | 0.5~1.0% |
| Resolution | 3mm or 0.1% (whichever is greater) |
| Display | Digital display/Chinese LCD display (English optional) |
| Analog Output | Two-wire 4-20mA/50Ω load, four-wire 4-20mA/10Ω load |
| Digital Output | RS485,232 optional |
| Supply power | Standard 24VDC, optional 220VAC |
| Ambient temperature | Display instrument -20~60ºC, probe -20~80ºC |
| Protection level | Display instrument IP65, probe IP68 |

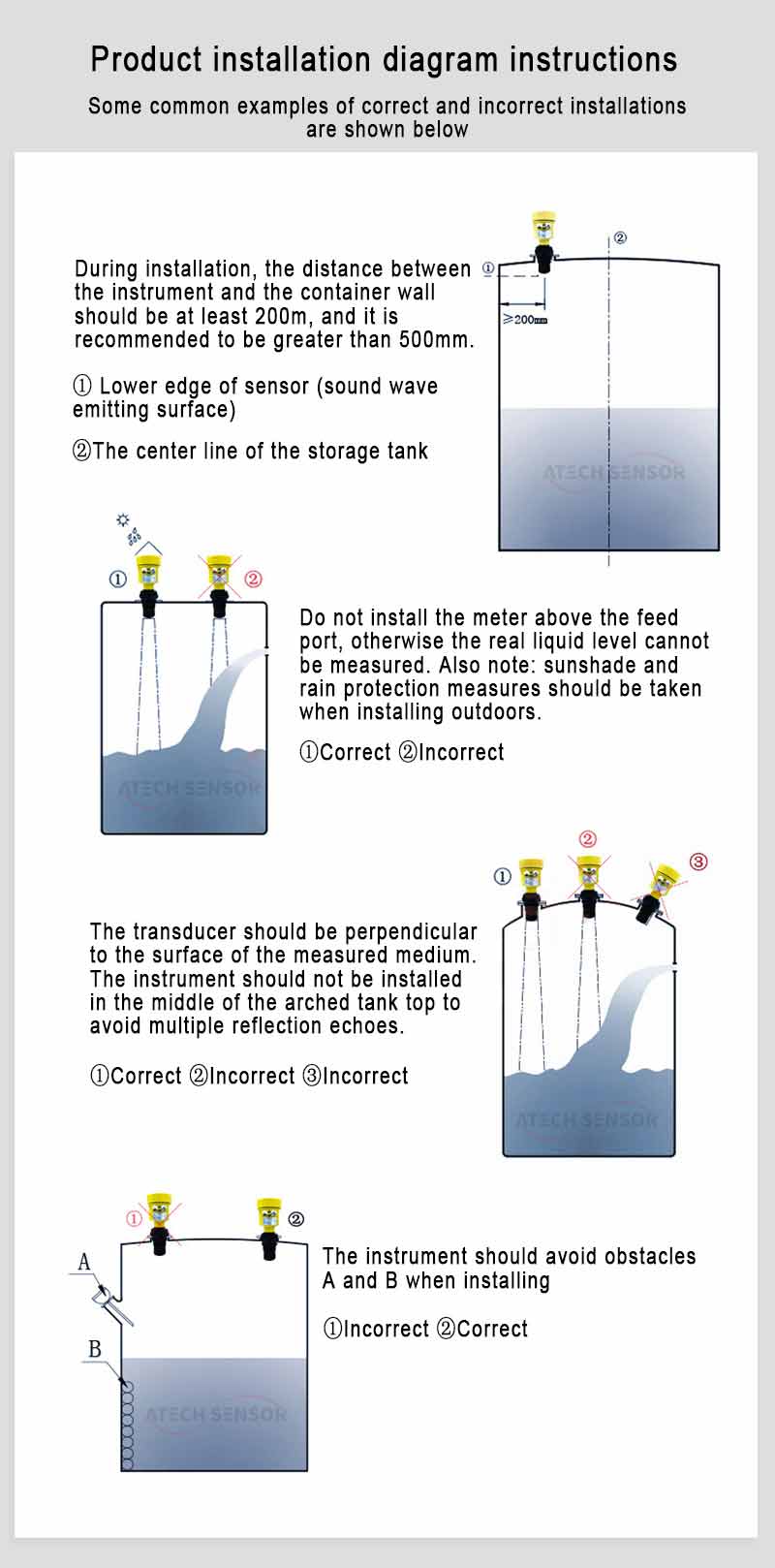

| Installation method | Thread, flange, bracket thread (customizable) |
Product Dimensions
Product Features
● High frequency signal, temperature measurement
● The electrical interface is made of ABS material, which is impact-resistant and aging-resistant
● The overall seal prevents moisture from affecting the function
● Various styles and various working conditions
● LED liquid crystal display, data is clear at a glance
● Filtering algorithm, effectively eliminates false echoes
Product Dimensions
Product Specification
| Product Name | Ultrasonic liquid level gauge |
| Measuring range | 5m,10m,15m,20m,30m,40m,50m,60m |
| Measurement accuracy | 0.5~1.0% |
| Resolution | 3mm or 0.1% (whichever is greater) |
| Display | Digital display/Chinese LCD display (English optional) |
| Analog Output | Two-wire 4-20mA/50Ω load, four-wire 4-20mA/10Ω load |
| Digital Output | RS485,232 optional |
| Supply power | Standard 24VDC, optional 220VAC |
| Ambient temperature | Display instrument -20~60ºC, probe -20~80ºC |
| Protection level | Display instrument IP65, probe IP68 |
| Installation method | Thread, flange, bracket thread (customizable) |
