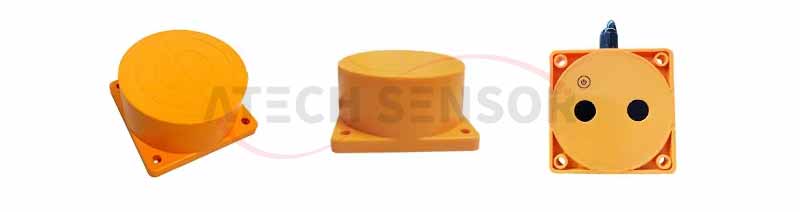

Products Description
Ultrasonic level meter is a digital level meter controlled by a microprocessor. During measurement, ultrasonic pulses are emitted by the sensor (transducer), and the sound waves are received by the same sensor after being reflected by the liquid surface, and converted into electrical signals by piezoelectric crystals. The distance from the sensor to the surface of the measured liquid is calculated by the time between the emission and reception of the sound waves. Due to the use of non-contact measurement, the measured medium is almost unlimited, and it can be widely used to measure the height of various liquids and solid materials.
Product Features
● Small size, easy to install.
● Wide range of applications, ready to use
● Adopting non-contact measurement, stable and reliable operation, not easily affected by the viscosity and density of the liquid.
● The sensor can be connected to the application.
● Free platform software is provided
● Simple structure, easy reading, very easy to install and maintain.
● Safe and clean, long service life of the instrument.
Product Specification
Product Name | Ultrasonic Level Sensor |

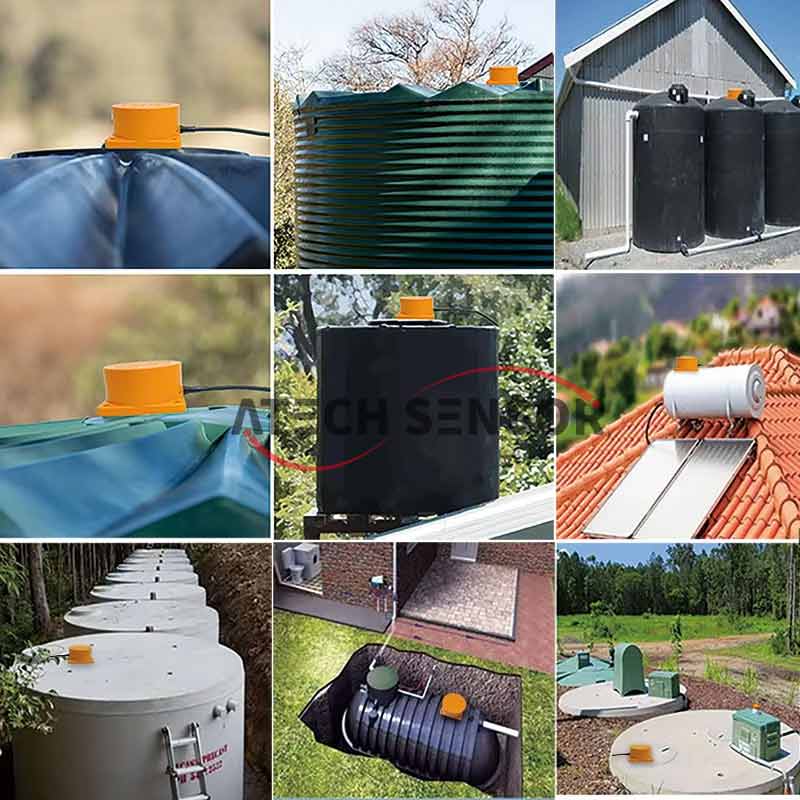

Application | Water /Oil Tank |
Usage | Home Automation System |
Operating Temperatures | -20-70ºC |
Operation System | Android,lOS APP,Remote Control |
RangeMeasuring | 0.1m~4.0m |
Accuracy | ±0.02m |
Power Supply | 100-240VAC to DC 5V |
Product Installation

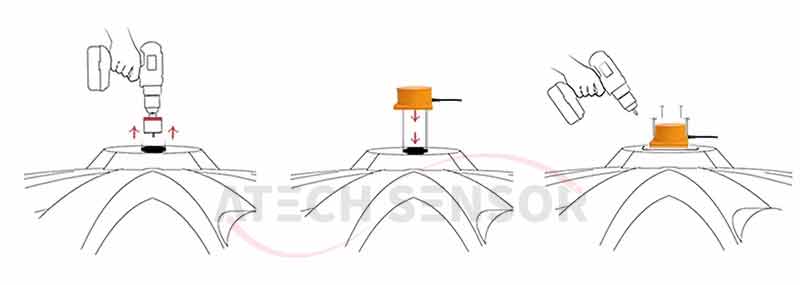

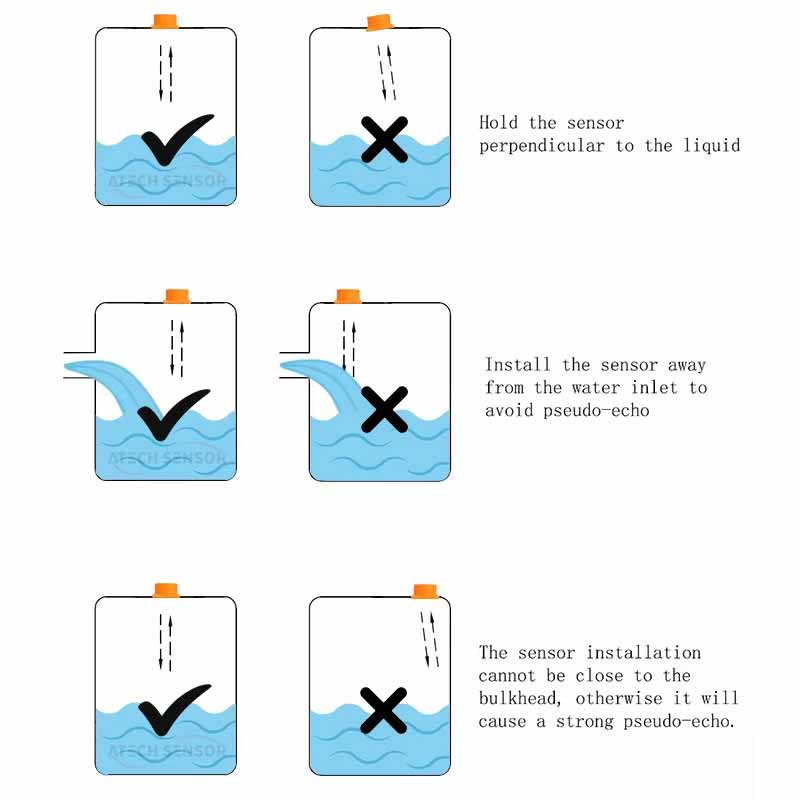

Product installation steps and precautions

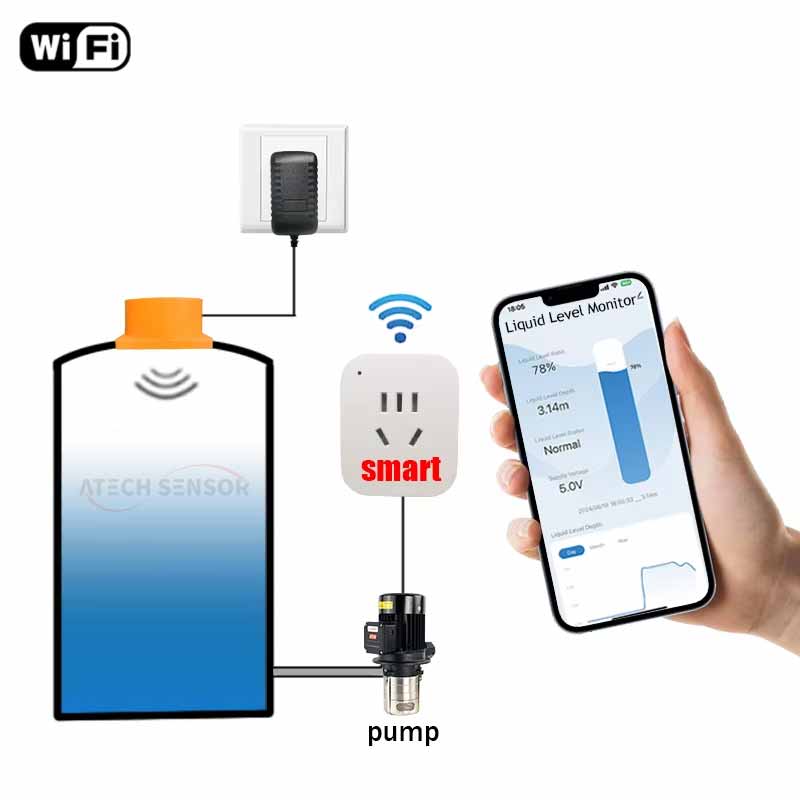

Product Connection
1. Power on the AC/DC ADAPTOR first, and then power on the sensor.
2. Scan code to download “Smart Life APP" on mobile device.
3.Network Reset

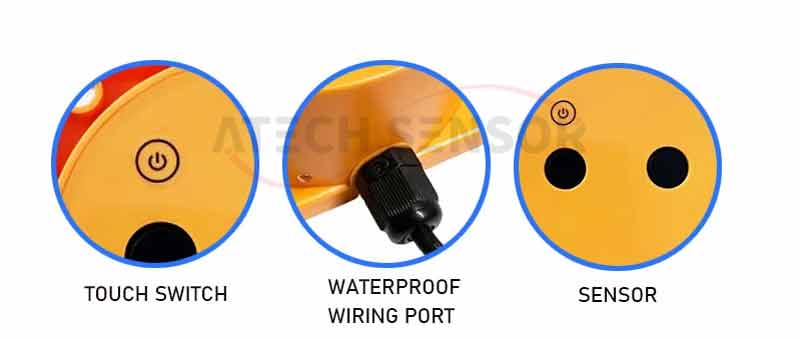

Press and hold the button for 5s, the led light flashes rapidly, then release the button, the network reset, the device connect to the network automatically.

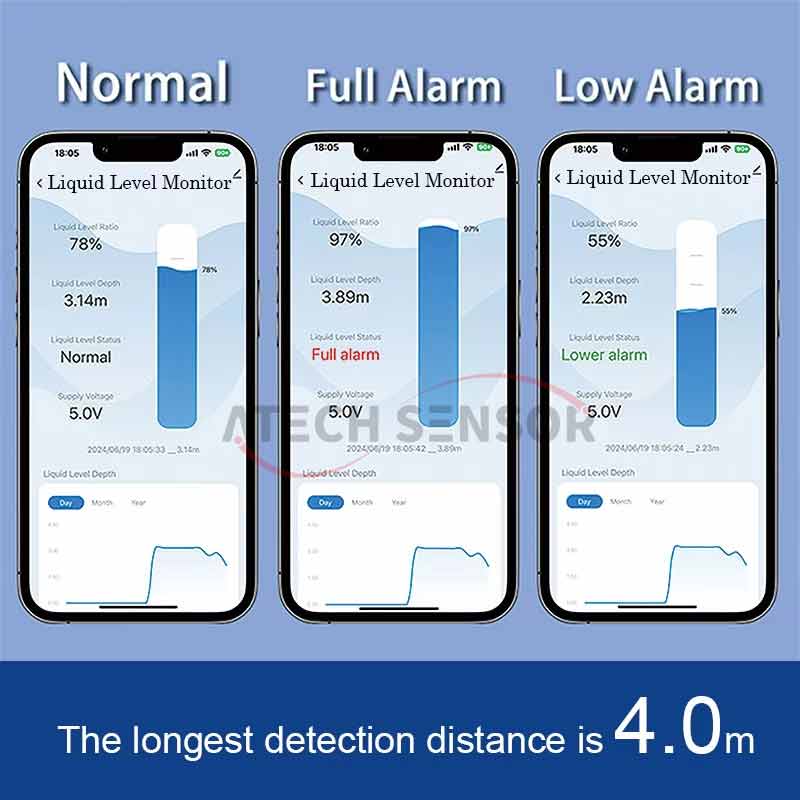

4.Connecting Sensors to APP.
Turn on the WiFi and Bluetooth of your phone,enter the app and add device.

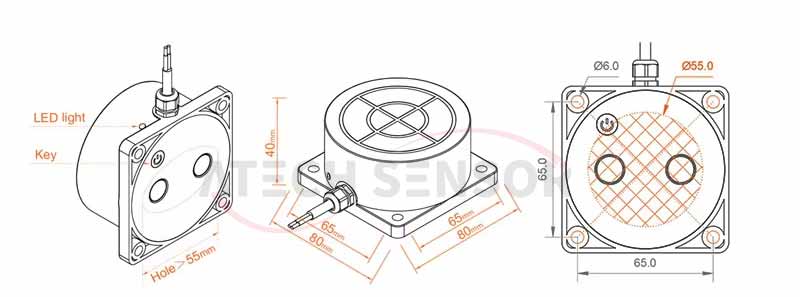

Product Dimensions
