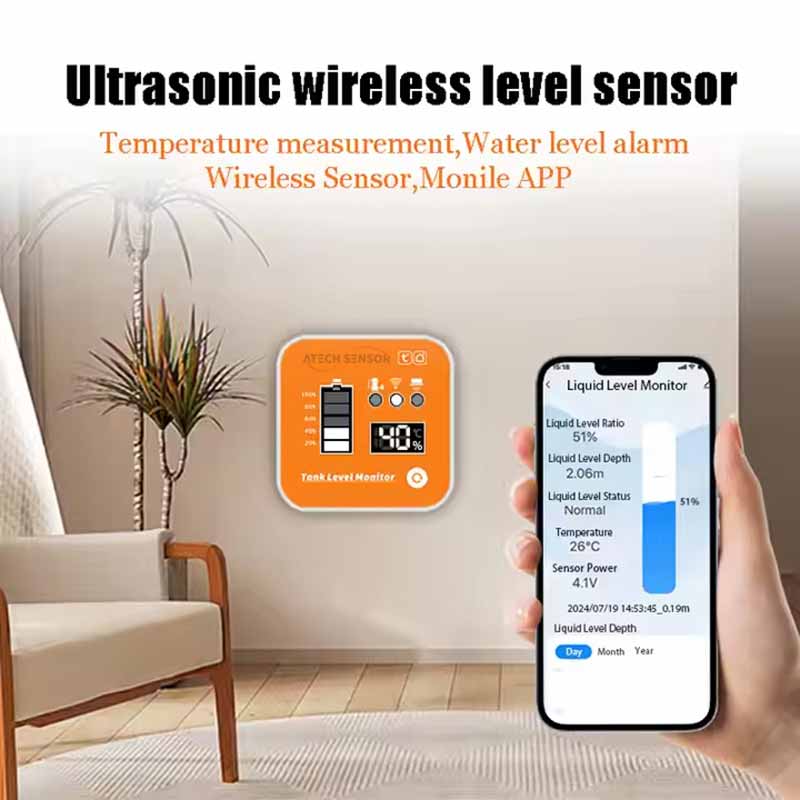

Products Description
Ultrasonic level meter is a digital level meter controlled by a microprocessor. During measurement, ultrasonic pulses are emitted by the sensor (transducer), and the sound waves are received by the same sensor after being reflected by the liquid surface, and converted into electrical signals by piezoelectric crystals. The distance from the sensor to the surface of the measured liquid is calculated by the time between the emission and reception of the sound waves. Due to the use of non-contact measurement, the measured medium is almost unlimited, and it can be widely used to measure the height of various liquids and solid materials.
Product Features
● Reliable distance detection capability
● Easy to install and use, ready to use
● High durability, versatility and low maintenance cost
● High accuracy and strong stability
● The sensor can be connected to the application.

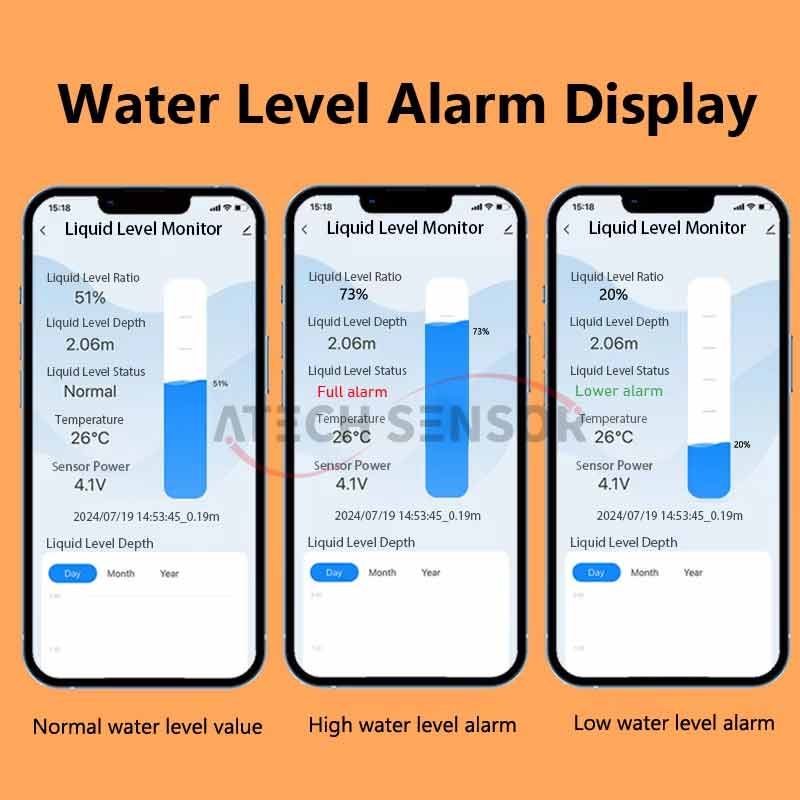

● Alarm function and parameter setting
● Free software platform
Product Specification
keywords | Liquid Level Monitor |
Application | Water /Oil Tank |
Operation System | Android,lOS APP,Remote Control |

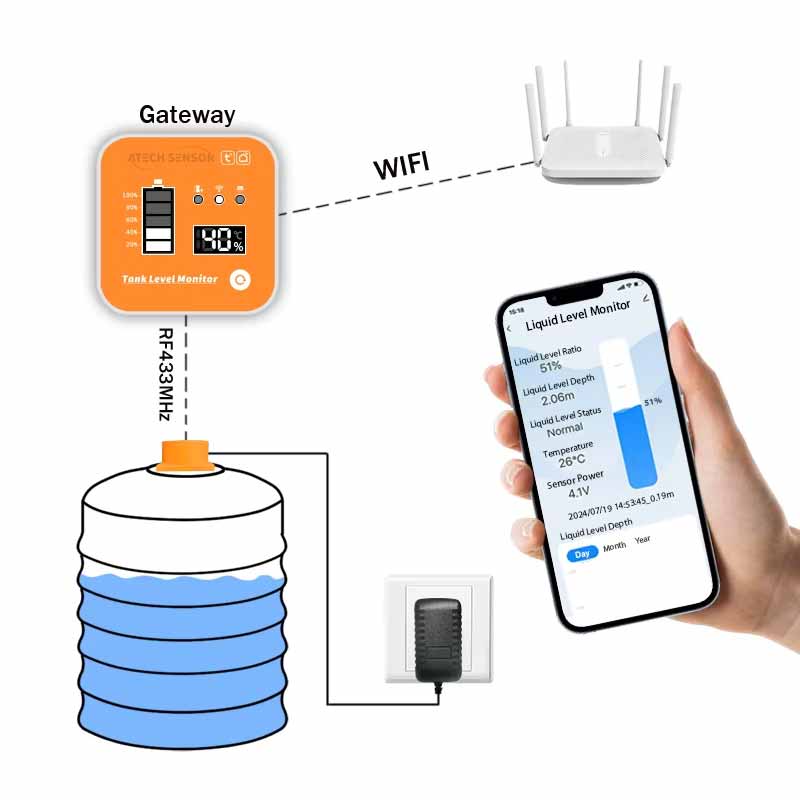

Network Mode | 2.4G WiFi + RF433 MHz |
WiFi | Between Gateway and router(max 50m no obstacle) |
RF433MHz | Between sensor and Gateway (max 500m no obstacle) |
Operating Temperatures | -20-70ºC |
Measuring Range | 0.1m~4.0m |
Accuracy | ±0.02m |
Power Supply | DC 5V @ 1A |

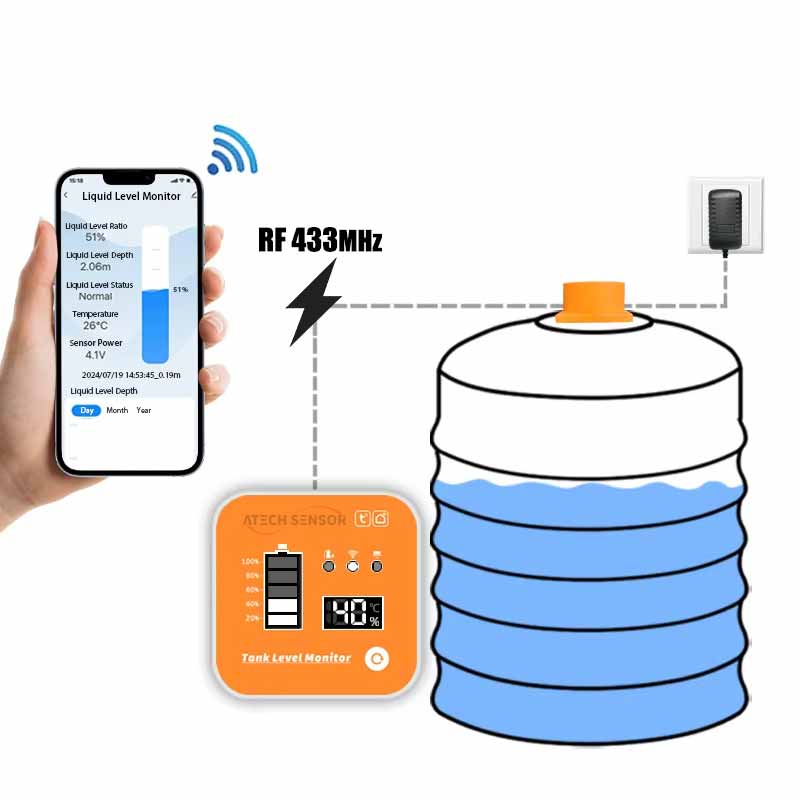

Product Connection
1. Power on the AC/DC ADAPTOR first, and then power on the sensor.
2. Scan code to download “Smart Life APP" on mobile device.
3.Network Reset
Press and hold the button for 5s, the led light flashes rapidly, then release the button, the network reset, the device connect to the network automatically.

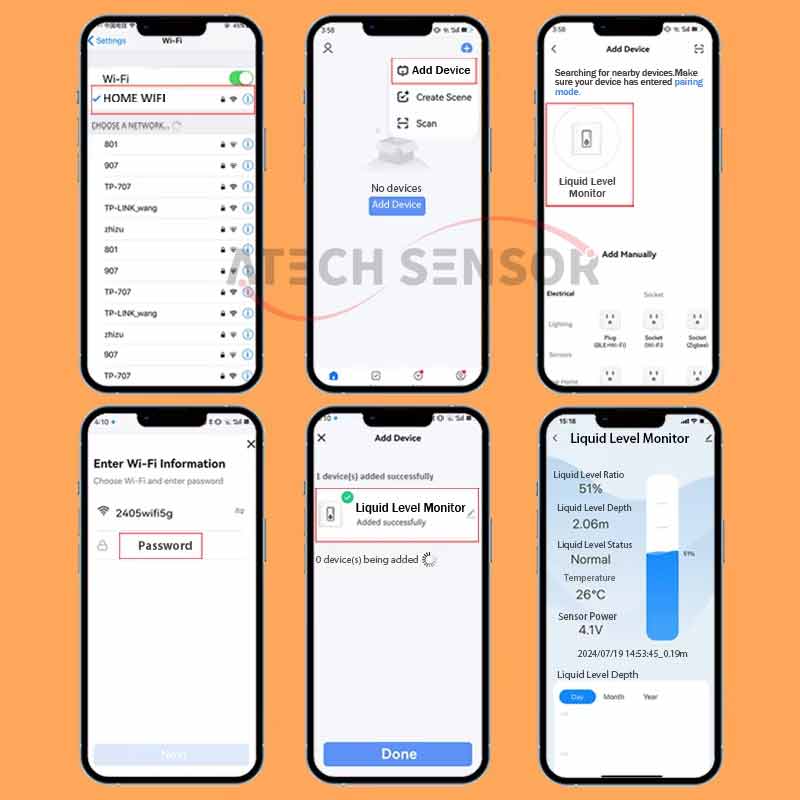

4.Connecting Sensors to APP.
Turn on the WiFi and Bluetooth of your phone,enter the app and add device.

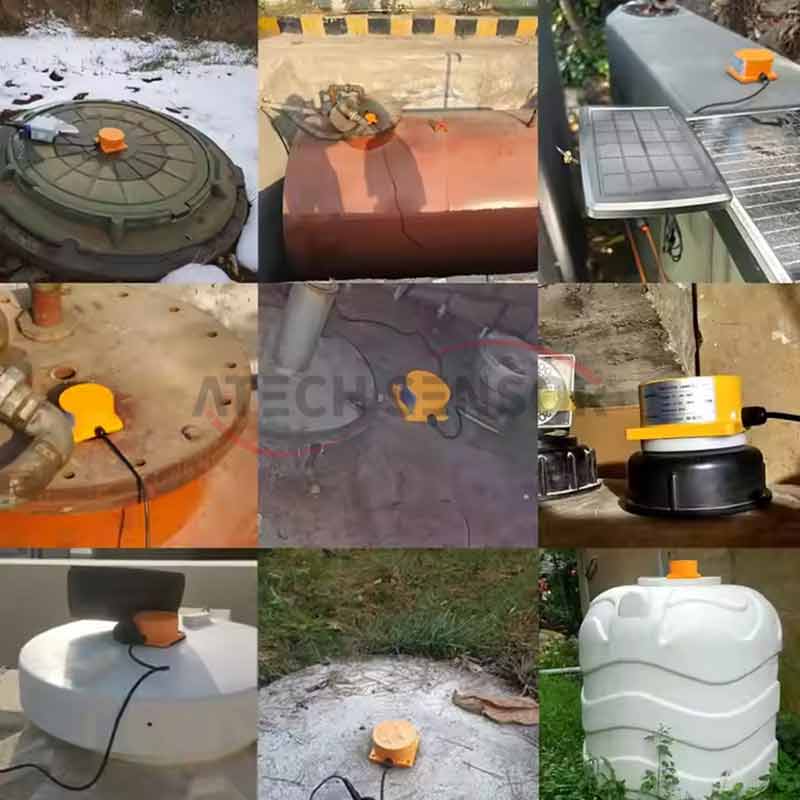

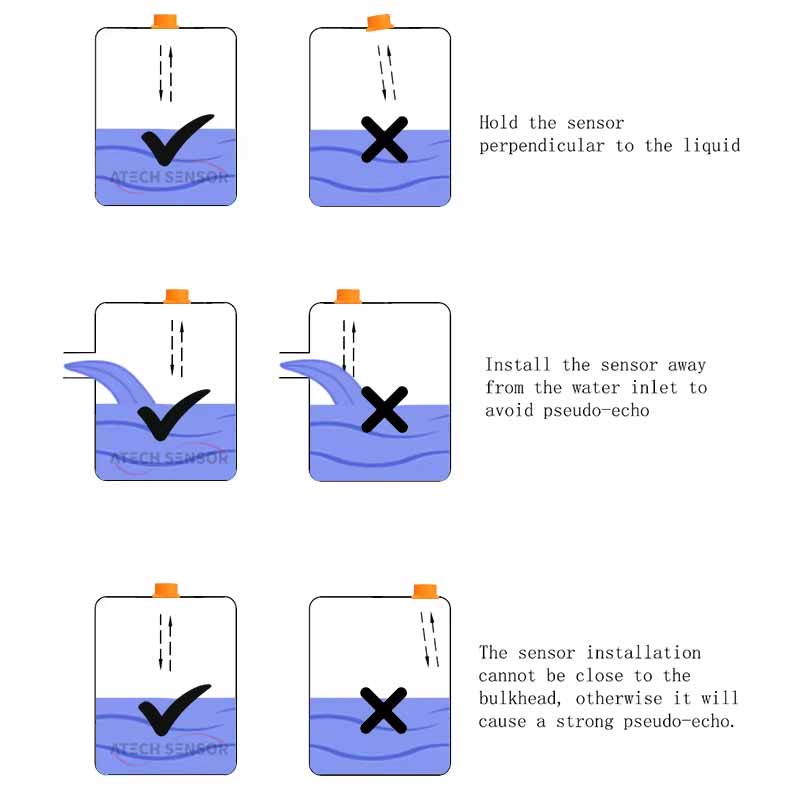

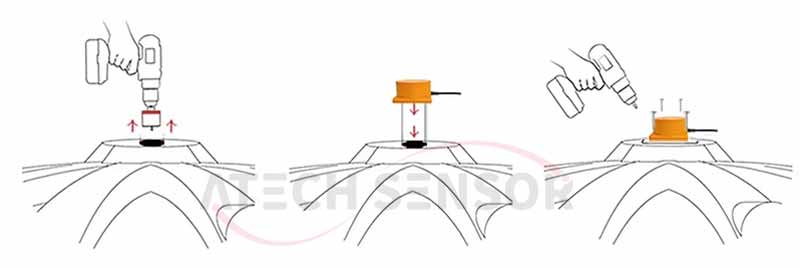

Product Installation
1. In the center of the tank, paste 3M installation mark.
2. Drill a hole right in the middle of the label with a diameter of 55mm;
3. Place the sensor over the hole, keeping it centered and the probe unobstructed;
4. Fasten the sensor with a self-tapping screw.
Product Dimensions
