Products Description
Ultrasonic liquid level sensors are devices that use ultrasonic waves to detect the level of liquid in a tank or container. These sensors work by sending out high-frequency sound waves that bounce off the surface of the liquid and are then received back by the sensor. By measuring the time it takes for the sound waves to return, the sensor can accurately determine the level of the liquid.

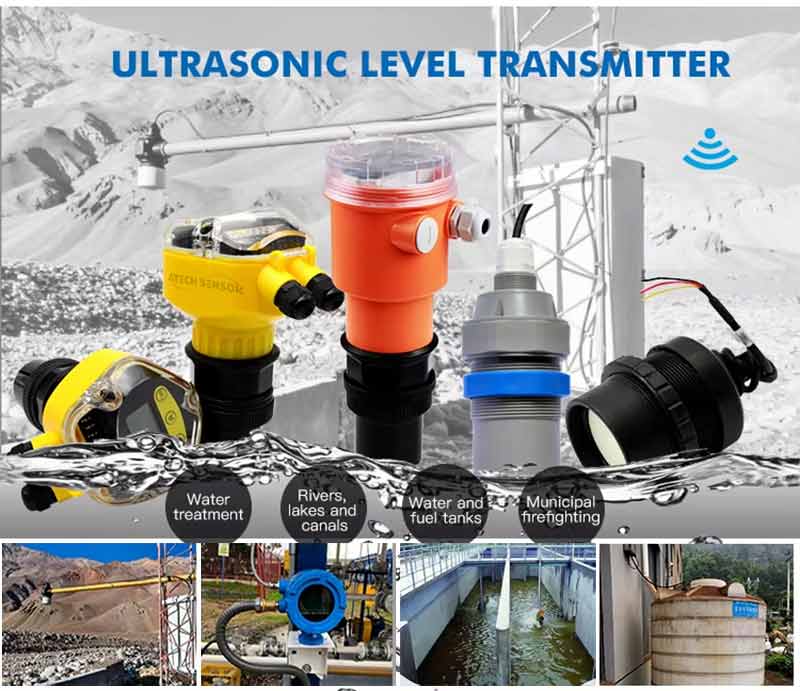

Ultrasonic liquid level sensors are commonly used in industrial applications such as monitoring tank levels in chemical processing plants, wastewater treatment facilities, and storage tanks. They are also used in automotive, medical, and agricultural industries for various liquid level monitoring applications. Overall, ultrasonic liquid level sensors are reliable, accurate, and versatile devices that play a crucial role in ensuring efficient and safe liquid level monitoring in various industries.
Product Features
● Strong adaptability: With temperature compensation function, it can be used in environments with large temperature differences.
● High precision: With RS-485 communication interface, it adopts special echo processing method to effectively avoid false echoes.
● Good sealing (protection level up to IP66/IP67) and high explosion-proof level
● Simple structure, easy reading, very easy to install and maintain.
● Adopt non-contact measurement, stable and reliable operation, not easily affected by liquid viscosity, density, etc.
● It can measure continuously at a fixed point, and can easily provide telemetry and remote control measurement signals.
● Safe and clean, long instrument service life.

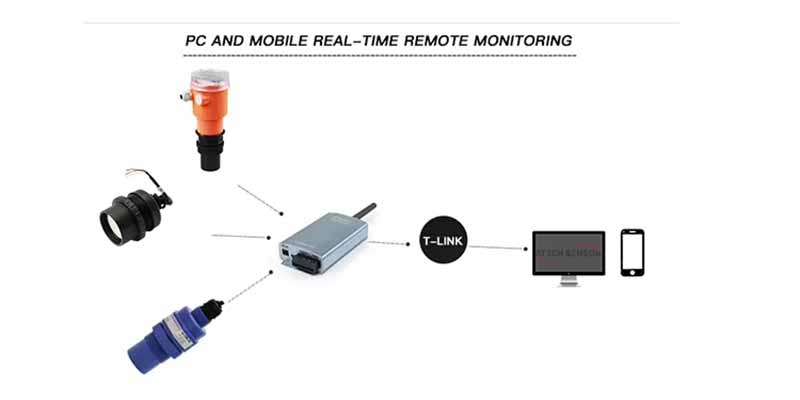

Real-time Remote Monitoring
When connected to a wireless terminal, ultrasonic liquid level sensors can provide real-time data on the liquid level, allowing for remote monitoring and control. This wireless connection eliminates the need for physical wires and cables, making installation and maintenance easier and more cost-effective.
Product Specification
| Measuring range | 1m~15m |
| Output signal | 4~20mA, 0-5V |
| Power supply | 12V, 24V/DC |
| Electronic connection | Water proof cable |
| Blind | <100mm, 200mm, or 350mm - optional |
| Accuracy | 0.25%FS, 0.5%FS - optional |
| Beam angle | 12° or 15° - optional |
| Installation | screw |
| IP level | IP65 |

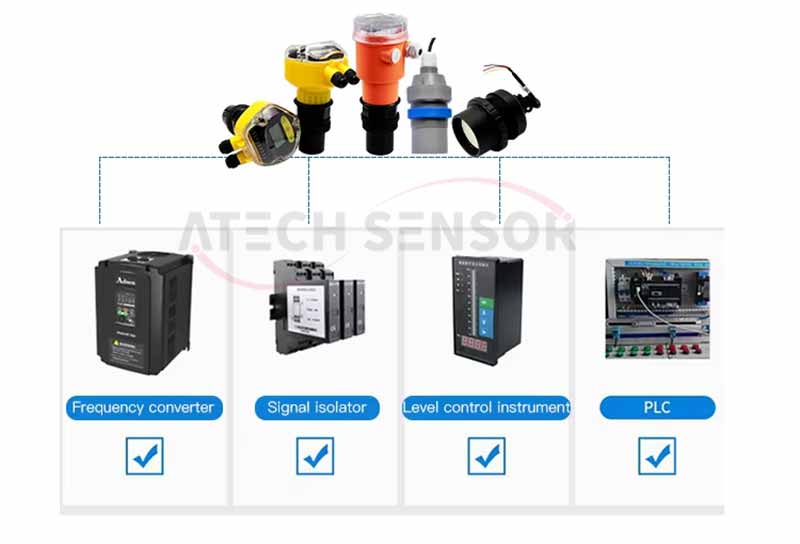

Connect with Acquisition Controller
These sensors are commonly connected to a data acquisition and control system, which collects and processes the data from the sensor. The control system can then be programmed to trigger alarms or control valves based on the liquid level readings. This allows for real-time monitoring and control of liquid levels, ensuring efficient and safe operation of industrial processes.
Product Dimensions
Product Features
● Strong adaptability: With temperature compensation function, it can be used in environments with large temperature differences.
● High precision: With RS-485 communication interface, it adopts special echo processing method to effectively avoid false echoes.
● Good sealing (protection level up to IP66/IP67) and high explosion-proof level
● Simple structure, easy reading, very easy to install and maintain.
● Adopt non-contact measurement, stable and reliable operation, not easily affected by liquid viscosity, density, etc.
● It can measure continuously at a fixed point, and can easily provide telemetry and remote control measurement signals.
● Safe and clean, long instrument service life.
Real-time Remote Monitoring
When connected to a wireless terminal, ultrasonic liquid level sensors can provide real-time data on the liquid level, allowing for remote monitoring and control. This wireless connection eliminates the need for physical wires and cables, making installation and maintenance easier and more cost-effective.
Product Dimensions
Product Specification
| Measuring range | 1m~15m |
| Output signal | 4~20mA, 0-5V |
| Power supply | 12V, 24V/DC |
| Electronic connection | Water proof cable |
| Blind | <100mm, 200mm, or 350mm - optional |
| Accuracy | 0.25%FS, 0.5%FS - optional |
| Beam angle | 12° or 15° - optional |
| Installation | screw |
| IP level | IP65 |
Connect with Acquisition Controller
These sensors are commonly connected to a data acquisition and control system, which collects and processes the data from the sensor. The control system can then be programmed to trigger alarms or control valves based on the liquid level readings. This allows for real-time monitoring and control of liquid levels, ensuring efficient and safe operation of industrial processes.
