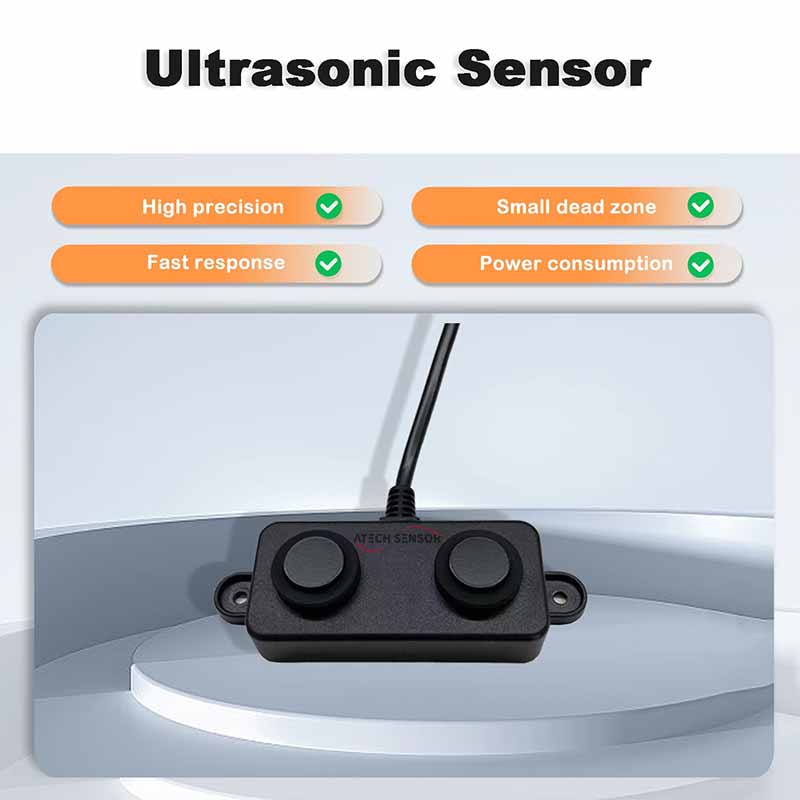

Products Description
Ultrasonic level meter is a digital level meter controlled by a microprocessor. During measurement, ultrasonic pulses are emitted by the sensor (transducer), and the sound waves are received by the same sensor after being reflected by the liquid surface, and converted into electrical signals by piezoelectric crystals. The distance from the sensor to the surface of the measured liquid is calculated by the time between the emission and reception of the sound waves. Due to the use of non-contact measurement, the measured medium is almost unlimited, and it can be widely used to measure the height of various liquids and solid materials.

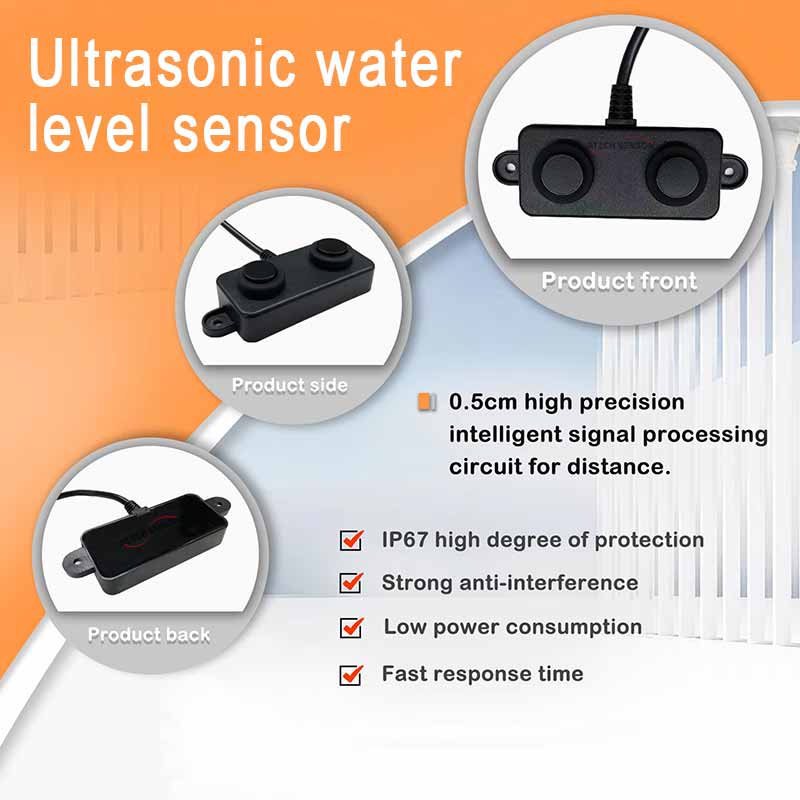

Product Features
● Not affected by the environment: suitable for various environments, not affected by light and noise.
● Low power consumption: smaller working current and smaller standby current.
● Stable data output: built-in intelligent algorithm optimizes circuit design, and data output is stable and reliable.
● Waterproof design: protection level can reach IP67, suitable for humid and harsh working environment.
● Small size and easy installation: reasonable structural design, strong applicability, flexible installation position.
● Factory direct sales: design and manufacture ultrasonic sensor modules, provide OEM&ODM services.
Product Specification
Product Name | Ultrasonic Level Sensor |
Model Number | AFLSS-38 |
Detection range | 3-450 cm |
Operating Temperatures | -15~60'C |
Working voltage | 3.3 - 5 V |
Output | PWM/UART/RS485/Switch |
Description | car parking/water level /oil lever sensor |
Theory | Distance Measuring Sensor |
Features | Dual probe ultrasonic sensor |
Product Dimensions
Product Features
● Not affected by the environment: suitable for various environments, not affected by light and noise.
● Low power consumption: smaller working current and smaller standby current.
● Stable data output: built-in intelligent algorithm optimizes circuit design, and data output is stable and reliable.
● Waterproof design: protection level can reach IP67, suitable for humid and harsh working environment.
● Small size and easy installation: reasonable structural design, strong applicability, flexible installation position.
● Factory direct sales: design and manufacture ultrasonic sensor modules, provide OEM&ODM services.
Product Dimensions
Product Specification
Product Name | Ultrasonic Level Sensor |
Model Number | AFLSS-38 |
Detection range | 3-450 cm |
Operating Temperatures | -15~60'C |
Working voltage | 3.3 - 5 V |
Output | PWM/UART/RS485/Switch |
Description | car parking/water level /oil lever sensor |
Theory | Distance Measuring Sensor |
Features | Dual probe ultrasonic sensor |
