Products Description
This industrial stainless steel submersible pressure level sensor adopts high-performance pressure sensing chip, with advanced circuit processing and temperature compensation technology. The submersible pressure level sensor receives different pressures at different depths of liquid, which can be converted into corresponding current signals and output through the sensor. In this way, the depth of liquid can be measured.
Application
• Waterworks
• Refinery
• Sewage disposal work
• Construction
• Light industry
• Mechanical and so on
Product Features
● The shell is made of stainless steel, anti-corrosion and easy to clean.
● This product can provide a steady performance.
● A precision device.
● Adopts high-performance pressure sensing chip.
● Advanced circuit processing and temperature compensation technology.
Product Specification
| Cable Length | 5m |
| Measuring Range | 0-5m |
| Accuracy | 0.5% |
| Output Signal | 4-20mA |
| Operating Voltage | 12-36V |
| Operating Temperature | -20°C~70°C |
| Overload Capacity | 300% |
| Service Life | 1×10⁸ Pressure Circulation (25°C) |
| Membrane Material | 316L Stainless Steel |
| Casing Material | 304 Stainless Steel |
| Protection Class | IP68 |

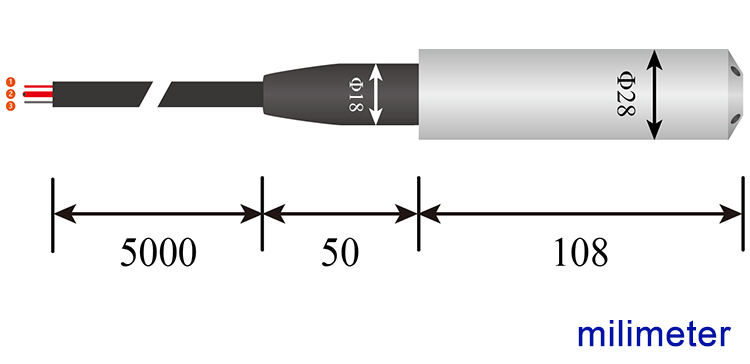

Product Dimensions
Product Features
● The shell is made of stainless steel, anti-corrosion and easy to clean.
● This product can provide a steady performance.
● A precision device.
● Adopts high-performance pressure sensing chip.
● Advanced circuit processing and temperature compensation technology.
Product Dimensions
Product Specification
| Cable Length | 5m |
| Measuring Range | 0-5m |
| Accuracy | 0.5% |
| Output Signal | 4-20mA |
| Operating Voltage | 12-36V |
| Operating Temperature | -20°C~70°C |
| Overload Capacity | 300% |
| Service Life | 1×10⁸ Pressure Circulation (25°C) |
| Membrane Material | 316L Stainless Steel |
| Casing Material | 304 Stainless Steel |
| Protection Class | IP68 |
