Products Description
Single-circuit digital display controller provides easy operation with measurement precision of 0.3%; double four-digit LED display. Supplied as a kit ready for easy and quick installation.
Applications.
- Bulk water storage tanks
- Fire Fighting reservoirs
- Irrigation tanks
- Chemical and process tanks.
- Rainwater Harvesting
Product Features
- Designed for bulk storage tanks with measuring range of up to 5 metres/10 metres. Panel can display level measurement in Feet.
- High Quality Submersible level transmitter with 4-20mA output
- Supporting 2-way alarm, 1-way control output or RS485 communication
- Interface adopting standard MODBUS protocol, 1-way DC24V feed output;
- Photoelectric isolation between input, output and power end;
- 100-240V AC/DC or 20-29V DC switch power supply;
- Control Panel mount design of the Digital meter. Standard snap-in installation; (cut out size: 77x152mm)
- Operating temperature: 0-50℃,
- Relative humidity: 5-85% RH without coagulation.

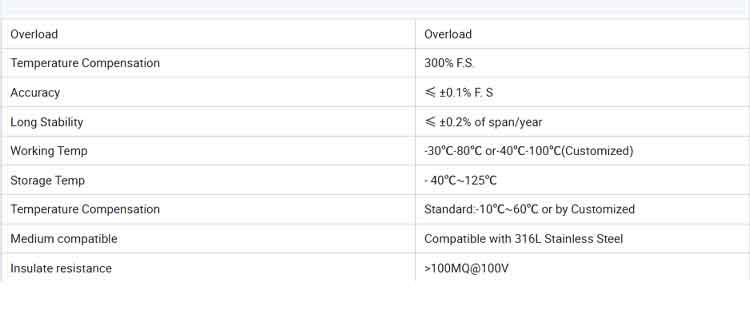

Product Specification
Product Dimensions
Product Features
- Designed for bulk storage tanks with measuring range of up to 5 metres/10 metres. Panel can display level measurement in Feet.
- High Quality Submersible level transmitter with 4-20mA output
- Supporting 2-way alarm, 1-way control output or RS485 communication
- Interface adopting standard MODBUS protocol, 1-way DC24V feed output;
- Photoelectric isolation between input, output and power end;
- 100-240V AC/DC or 20-29V DC switch power supply;
- Control Panel mount design of the Digital meter. Standard snap-in installation; (cut out size: 77x152mm)
- Operating temperature: 0-50℃,
- Relative humidity: 5-85% RH without coagulation.
Product Dimensions
Product Specification
