Products Description
Multi-parameter water quality measuring instruments are mainly used on ocean survey ships, ocean buoys, ocean stations and other monitoring platforms to measure various ecological and environmental elements of seawater, including temperature, salinity, conductivity, chloride, depth, dissolved oxygen, turbidity, redox potential, chlorophyll, blue-green algae, etc. These elements can be arbitrarily selected according to actual measurement needs to provide survey data for human health, environmental protection, marine engineering construction, surface aquaculture, marine resource development and marine scientific research.
Product Features
●User-friendly navigation interface
●Upgradable to more advanced models

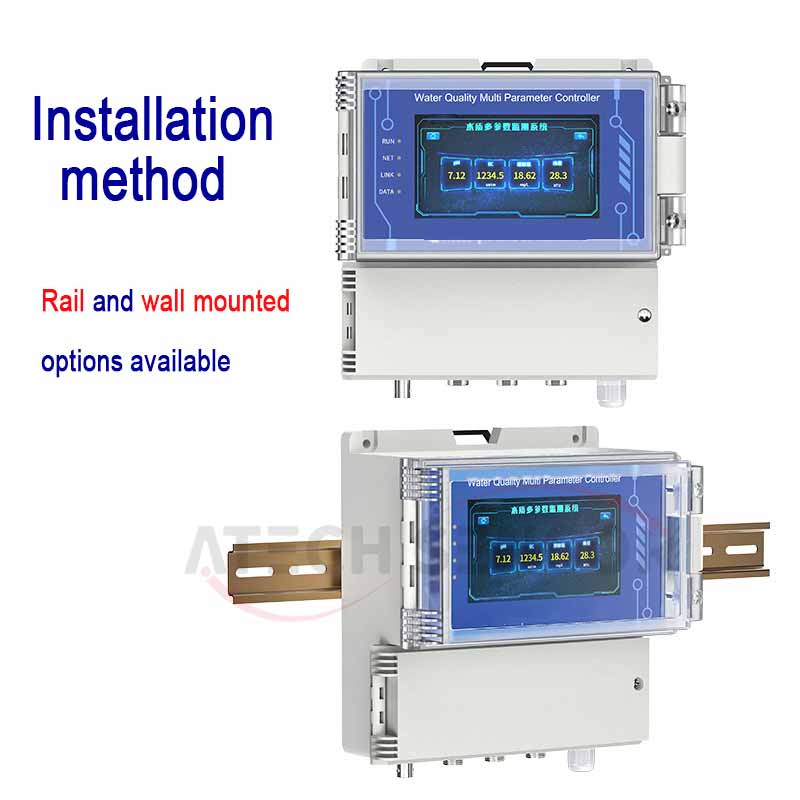

●Quick installation, no electrician required
●Universal sensor input
●Historical trend graph display
●“Quick” and “Precise” calibration options
Product Specification
| Output signal | Isolated RS485 (standard Modbus-RTU protocol) |
| Isolation 4~20mA, maximum loop resistance 750Ω | |
| Alarm output | One set of high and low limit alarm electric shock (5A/250V AC), normally open contact relay |
| Power supply | AC220V±10%, 50Hz/60Hz (DC24V power supply can be customized) |
| Power consumption | ≤3W |
| Environmental conditions | Temperature 0~60℃, humidity ≤95%RH |
| Display Mode | 5-inch color touch screen |
| Application | Environmental protection, sewage treatment, thermal power, breeding, food processing, metallurgy, chemical industry, etc. |

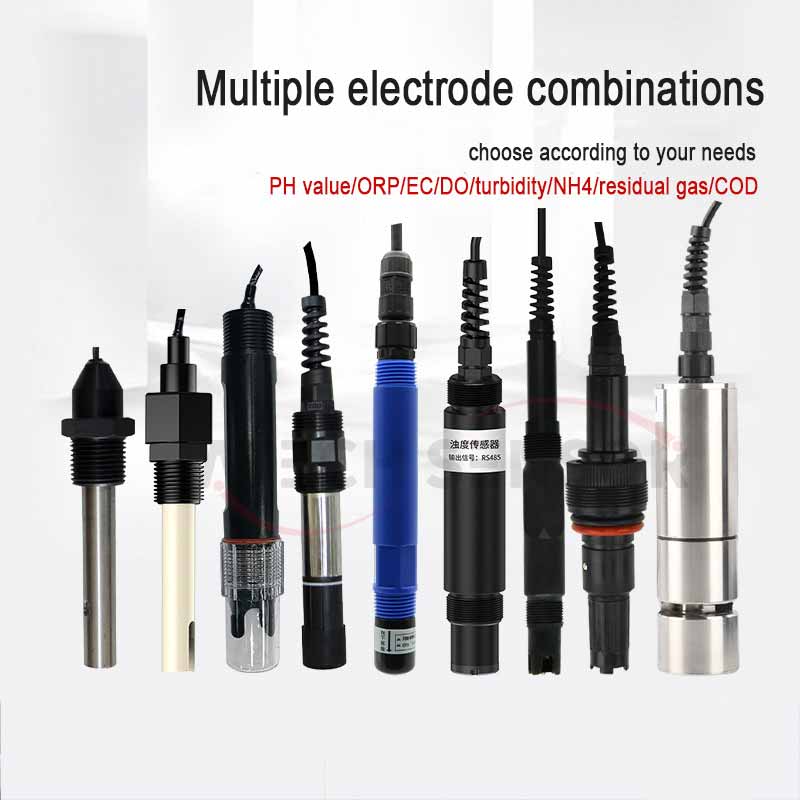

Measuring range pH:0~14 EC:0~2000μs/cm Residual chlorine:0~20mg/L COD:0~500mg/L ORP:-1999mv~1999mv Dissolved oxygen:0~20mg/L Turbidity:0~1000NTU Ammonia nitrogen:0~1000mg/L Accuracy pH:±0.02 EC:±1%FS Residual chlorine:±0.5%FS COD:±5%FS ORP:±1mv Dissolved oxygen:±0.5%FS Turbidity:±5% Ammonia nitrogen:±1%FS Resolution pH:0.01 EC:1μs/cm Residual chlorine:0.1mg/L COD:0.01mg/L ORP:1mv Dissolved oxygen:0.01mg/L Turbidity:0.1NTU Ammonia nitrogen:0.01mg/L
Product Dimensions
Product Features
●User-friendly navigation interface
●Upgradable to more advanced models
●Quick installation, no electrician required
●Universal sensor input
●Historical trend graph display
●“Quick” and “Precise” calibration options
Product Dimensions
Product Specification
| Output signal | Isolated RS485 (standard Modbus-RTU protocol) |
| Isolation 4~20mA, maximum loop resistance 750Ω | |
| Alarm output | One set of high and low limit alarm electric shock (5A/250V AC), normally open contact relay |
| Power supply | AC220V±10%, 50Hz/60Hz (DC24V power supply can be customized) |
| Power consumption | ≤3W |
| Environmental conditions | Temperature 0~60℃, humidity ≤95%RH |
| Display Mode | 5-inch color touch screen |
| Application | Environmental protection, sewage treatment, thermal power, breeding, food processing, metallurgy, chemical industry, etc. |
Measuring range pH:0~14 EC:0~2000μs/cm Residual chlorine:0~20mg/L COD:0~500mg/L ORP:-1999mv~1999mv Dissolved oxygen:0~20mg/L Turbidity:0~1000NTU Ammonia nitrogen:0~1000mg/L Accuracy pH:±0.02 EC:±1%FS Residual chlorine:±0.5%FS COD:±5%FS ORP:±1mv Dissolved oxygen:±0.5%FS Turbidity:±5% Ammonia nitrogen:±1%FS Resolution pH:0.01 EC:1μs/cm Residual chlorine:0.1mg/L COD:0.01mg/L ORP:1mv Dissolved oxygen:0.01mg/L Turbidity:0.1NTU Ammonia nitrogen:0.01mg/L
